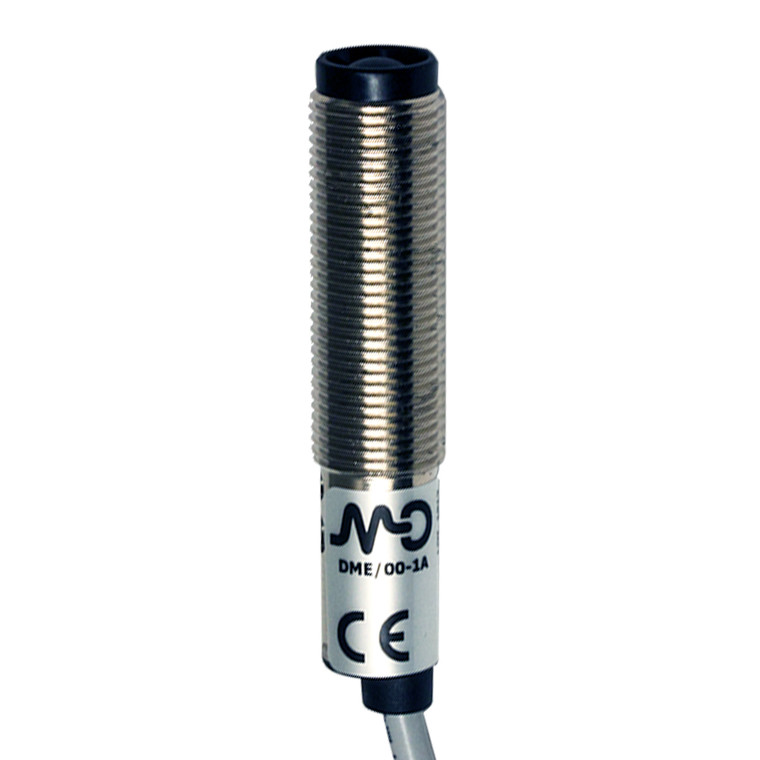

The Datasensing DME/00-1A25 is a high-performance photoelectric sensor designed for precision and reliability. With a nominal sensing distance of 4 meters, this emitter operates without adjustment and does not include a check cable, featuring a 2-meter PVC cable for easy installation. The sensor boasts a thermal drift of Sr at ?10% Sr and a repeat accuracy of 5%, ensuring consistent performance. Its axial optic position and LED infrared emission at 880nm make it ideal for various applications. The sensor operates on a voltage range of 10 to 30VDC, with a no-load supply current of ?30mA and a maximum ripple content of ?10%.
Equipped with yellow LED indicators for power status, the DME/00-1A25 includes essential protections such as short-circuit, reverse polarity, and impulsive overvoltage protection. The housing is constructed from durable nickel-plated brass and PBT, with an active head made of PMMA, ensuring robustness and longevity. The sensor is designed to withstand harsh environments, with an operating temperature range of -25°C to +70°C and mechanical protection rated at IP67. It is compliant with CE and cULus approvals and meets EMC compatibility standards EN 60947-5-2. Additionally, it is resistant to shocks and vibrations as per IEC standards. Supplied with M12 x 1 nuts, the sensor's dimensions are M12x1/L=54.5mm, making it a compact and efficient solution for your sensing needs.
- Nominal sensing distance:
- 4m
- Thermal drift of Sr:
- ?10% Sr
- Repeat Accuracy:
- 5%
- Function Principle:
- Emitter
- Emitter/Receiver:
- Emitter
- Optic position:
- Axial
- Operating Voltage:
- 10 30VDC
- No-Load supply current:
- ? 30mA
- Max ripple content:
- ?10%
- LED indicators:
- Yellow (Power ON)
- Time delay before availability:
- ?150ms
- Short-circuit protection:
- Yes
- Reverse Polarity Protection:
- Yes
- Emission:
- LED Infrared (880nm)
- Impulsive Overvoltage Protection:
- Yes
- Housing Material:
- Nickel plated brass / PBT cable exit
- Connections:
- 2m PVC cable
- Active Head Material:
- PMMA
- Diameter/Dimension:
- M12
- Approvals:
- CE cULus
- EMC compatibility:
- EN 60947-5-2
- Shocks and vibrations:
- Vibration IEC 60068-2-6 / Shock IEC 60068-2-27
- Supplied Accessories:
- nuts M12 x 1
- Dimensions:
- M12x1/L=54,5mm
- Operating Temperature:
- - 25°C + 70°C (Without freeze)
- Mechanical Protection:
- IP67
