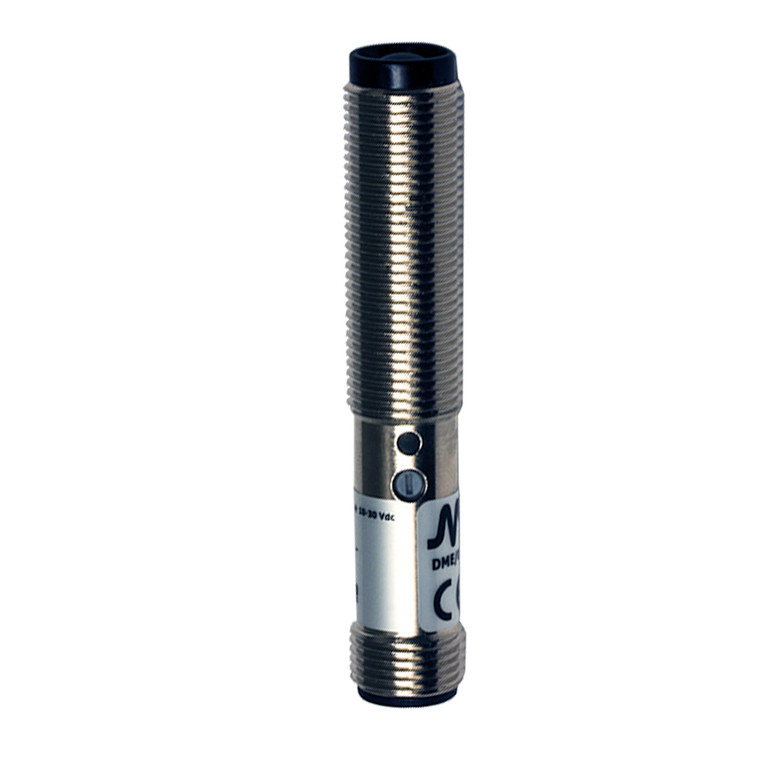

Datasensing DME/00-1H Sensors
Datasensing
$74.87
The Datasensing DME/00-1H Sensors are advanced photoelectric sensors designed for precision and reliability. With a nominal sensing distance of 4 meters, these sensors offer models in diffuse reflection, polarized, and through-beam configurations. They feature a local and remote teach-in function for easy sensitivity adjustment and selectable Light-on/Dark-on outputs. Built to withstand harsh environments, they boast an IP67 protection degree and are equipped with a multifunction LED status indicator for clear operational feedback.
Constructed with a robust nickel-plated brass housing and a PMMA active head, the DME/00-1H Sensors are designed to endure temperatures ranging from -25°C to +70°C. They are powered by a 10
30VDC operating voltage, with a no-load supply current of ? 30mA, ensuring energy efficiency. The sensors are equipped with comprehensive electrical protections, including short-circuit and reverse polarity protection, as well as impulsive overvoltage protection.
The DME/00-1H Sensors are CE and cULus listed, ensuring compliance with international safety standards. They are also EMC compatible with EN 60947-5-2, and have been tested for shocks and vibrations according to IEC standards. With a compact M12x1/L=65.5mm design and a weight of just 28g, these sensors are easy to integrate into various applications. Supplied with M12 x 1 nuts, they are ready for immediate installation.
- Nominal sensing distance:
- 4m
- Thermal drift of Sr:
- ?10% Sr
- Repeat Accuracy:
- 5%
- Sensitivity adjustment:
- Teach-in
- Function Principle:
- Emitter
- Emitter/Receiver:
- Emitter
- Optic position:
- Axial
- Operating Voltage:
- 10 30VDC
- No-Load supply current:
- ? 30mA
- Max ripple content:
- ?10%
- LED indicators:
- Yellow (Power ON)
- Time delay before availability:
- ?150ms
- Short-circuit protection:
- Yes
- Reverse Polarity Protection:
- Yes
- Emission:
- LED Infrared (880nm)
- Impulsive Overvoltage Protection:
- Yes
- Weight:
- 28g
- Housing Material:
- Nickel plated brass
- Connections:
- M12 plug
- Active Head Material:
- PMMA
- Operating temperature:
- - 25°C + 70° C
- Diameter/Dimension:
- M12
- Approvals:
- CE cULus
- EMC compatibility:
- EN 60947-5-2
- Shocks and vibrations:
- Vibration IEC 60068-2-6 / Shock IEC 60068-2-27
- Degree of protection:
- IP67
- Supplied Accessories:
- nuts M12 x 1
- Operating Temperature:
- - 25°C + 70°C (Without freeze)
- Mechanical Protection:
- IP67
