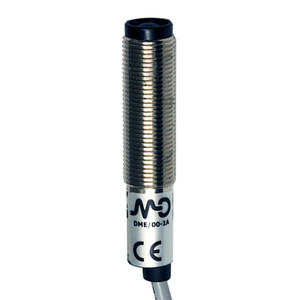

The Datasensing DME/X0-1A25 is a robust photoelectric sensor designed for precision and reliability. With a nominal sensing distance of 4 meters, this emitter-type sensor operates efficiently without the need for adjustments. It features a 2-meter check cable for easy installation and connectivity. The sensor is equipped with a yellow LED indicator to signal power status and is protected against short-circuits, reverse polarity, and impulsive overvoltage, ensuring durability and safety in various environments.
Constructed with a nickel-plated brass and PBT housing, the DME/X0-1A25 is built to withstand harsh conditions, offering an IP67 mechanical protection rating. Its active head is made from PMMA, and the sensor is compatible with EMC standards EN 60947-5-2. The device is designed to handle thermal drift of ?10% Sr and maintains a repeat accuracy of 5%, making it ideal for applications requiring high precision.
The sensor operates on a voltage range of 10 to 30VDC, with a no-load supply current of ?30mA and a maximum ripple content of ?10%. It is capable of withstanding shocks and vibrations as per IEC standards, ensuring reliable performance in dynamic environments. The DME/X0-1A25 is supplied with M12 x 1 nuts for secure mounting and is approved by CE and cULus, making it a versatile choice for industrial automation needs.
- Nominal sensing distance:
- 4m
- Thermal drift of Sr:
- ?10% Sr
- Repeat Accuracy:
- 5%
- Function Principle:
- Emitter
- Emitter/Receiver:
- Emitter
- Optic position:
- Axial
- Operating Voltage:
- 10 30VDC
- No-Load supply current:
- ? 30mA
- Max ripple content:
- ?10%
- LED indicators:
- Yellow (Power ON)
- Time delay before availability:
- ?150ms
- Short-circuit protection:
- Yes
- Reverse Polarity Protection:
- Yes
- Emission:
- LED Infrared (880nm)
- Impulsive Overvoltage Protection:
- Yes
- Housing Material:
- Nickel plated brass / PBT cable exit
- Connections:
- 2m PVC cable
- Active Head Material:
- PMMA
- Diameter/Dimension:
- M12
- Approvals:
- CE cULus
- EMC compatibility:
- EN 60947-5-2
- Shocks and vibrations:
- Vibration IEC 60068-2-6 / Shock IEC 60068-2-27
- Supplied Accessories:
- nuts M12 x 1
- Dimensions:
- M12x1/L=54,5mm
- Operating Temperature:
- - 25°C + 70°C (Without freeze)
- Mechanical Protection:
- IP67
