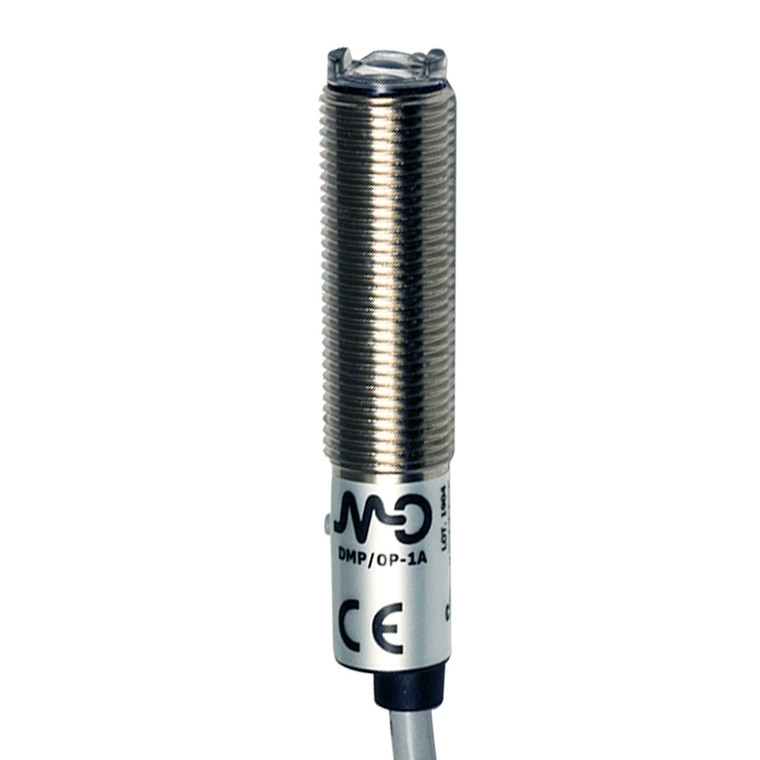

Datasensing DMP/0N-1A Sensors

The Datasensing DMP/0N-1A Sensors are designed for precision and reliability in various industrial applications. These sensors feature models with diffuse reflection, polarized, and through-beam capabilities, offering versatile solutions for your sensing needs. With a nominal sensing distance of 2.5 meters and a thermal drift of ?10% Sr, these sensors ensure consistent performance. The local and remote teach-in function allows for easy sensitivity adjustment, while the light-on/dark-on selectable outputs provide flexibility in operation. Built to withstand harsh environments, the DMP/0N-1A Sensors boast an IP67 protection degree, safeguarding against dust and water ingress. The multifunction LED status indicator provides clear visual feedback, and the sensors are equipped with complete protection against electrical damages, including short-circuit and reverse polarity protection. The robust nickel-plated brass housing and PMMA active head material ensure durability, while the 2-meter PVC cable offers convenient connectivity. Operating within a voltage range of 10 to 30VDC, these sensors maintain a low no-load supply current of ?30mA and a load current of ?100mA. The output voltage drop is minimal at ?2V@Iload=100mA, and the sensors are designed to handle a maximum ripple content of ?10%. With a high switching frequency of 400Hz and a rapid response time of 1.25ms, the DMP/0N-1A Sensors deliver quick and accurate detection. Approved by CE and cULus, and compliant with EMC compatibility standards EN 60947-5-2, these sensors are built to meet rigorous industry standards. They are also resistant to shocks and vibrations, adhering to IEC 60068-2-6 and IEC 60068-2-27 standards. The sensors come with supplied accessories, including M12 x 1 nuts, and are designed to operate in temperatures ranging from -25°C to +70°C, ensuring reliable performance in a wide range of conditions.
