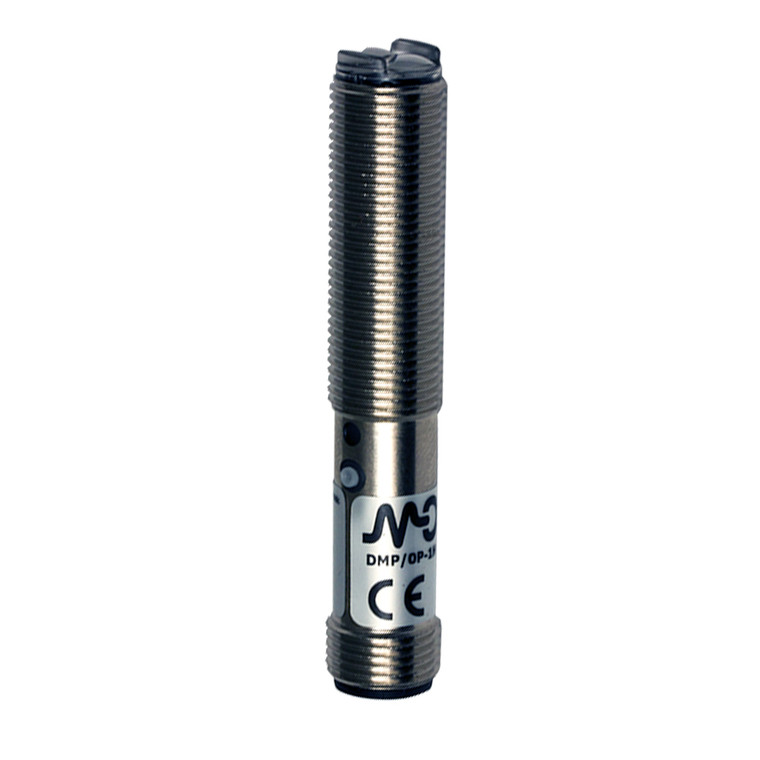

Datasensing DMP/0N-1H Sensors

The Datasensing DMP/0N-1H Sensors are advanced photoelectric sensors designed for precision and reliability in various industrial applications. With a nominal sensing distance of 2.5 meters, these sensors utilize a polarized function principle, ensuring accurate detection even in challenging environments. The sensors feature a local and remote teach-in function for easy sensitivity adjustment, and offer selectable light-on/dark-on outputs to suit different operational needs. Built to withstand harsh conditions, the DMP/0N-1H Sensors boast an IP67 protection degree, safeguarding against dust and water ingress. The robust nickel-plated brass housing and PMMA active head material ensure durability, while the multifunction LED status indicator provides clear operational feedback. With a high switching frequency of 400Hz and a rapid response time of 1.25ms, these sensors deliver quick and reliable performance. Engineered for safety and efficiency, the sensors include complete protection against electrical damages, such as short-circuit and reverse polarity protection, and are capable of handling impulsive overvoltage. They operate within a wide voltage range of 10 to 30VDC, with minimal power consumption and low leakage current. The DMP/0N-1H Sensors are CE and cULus listed, meeting stringent international standards for quality and safety. Ideal for use with the RL110 reflector, these sensors are designed to minimize interference from external light sources, withstanding up to 3,000 lux from incandescent lamps and 10,000 lux from sunlight. The compact M12x1 design, complete with M12 plug connections and supplied nuts, ensures easy installation and integration into existing systems. Suitable for operating temperatures ranging from -25°C to +70°C, the Datasensing DMP/0N-1H Sensors are a reliable choice for demanding industrial environments.
