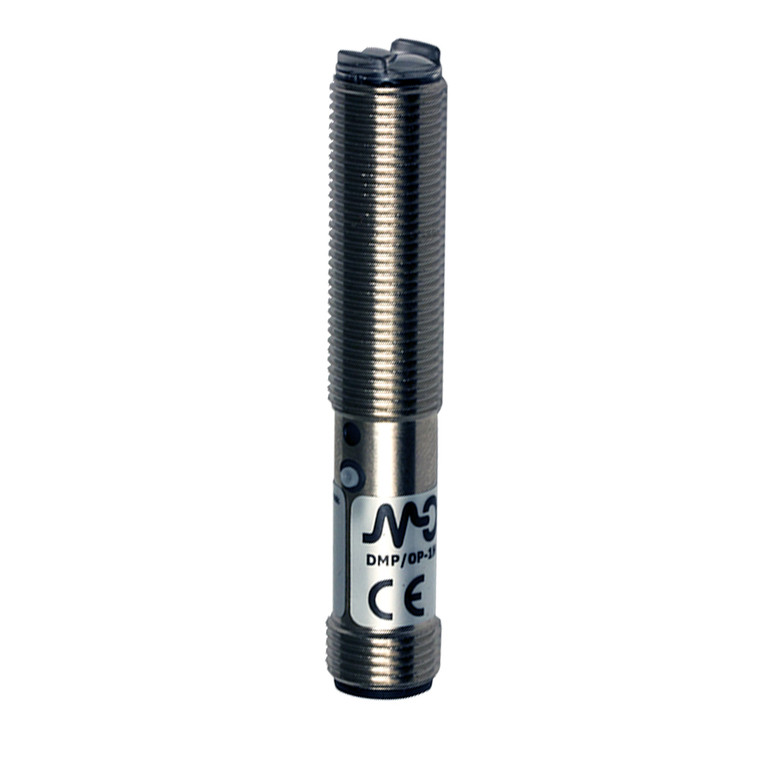

Datasensing DMP/0P-1H Sensors
Datasensing
$125.08
The Datasensing DMP/0P-1H Sensors are advanced photoelectric sensors designed for precision and reliability in various industrial applications. With a nominal sensing distance of 2.5 meters, these sensors utilize a polarized function principle, ensuring accurate detection even in challenging environments. The sensors feature a local and remote teach-in function for easy sensitivity adjustment, and offer selectable light-on/dark-on outputs for versatile operation.
Built to withstand harsh conditions, the DMP/0P-1H Sensors boast an IP67 protection degree, safeguarding against dust and water ingress. The robust nickel-plated brass housing and PMMA active head material ensure durability, while the compact M12 design facilitates easy installation. The sensors are equipped with a multifunction LED status indicator, providing clear visual feedback on operational status.
Engineered for efficiency, these sensors operate within a voltage range of 10 to 30VDC, with a low no-load supply current of ?30mA. They support a high switching frequency of 400Hz and a rapid response time of 1.25ms, making them ideal for fast-paced environments. The sensors also include comprehensive electrical protections, such as short-circuit and reverse polarity protection, ensuring reliable performance and longevity.
Approved by CE and cULus, the DMP/0P-1H Sensors meet stringent safety and quality standards, making them a trusted choice for professionals seeking dependable sensing solutions.
- Nominal sensing distance:
- 2,5m
- Thermal drift of Sr:
- ?10% Sr
- Repeat Accuracy:
- 5%
- Sensitivity adjustment:
- Teach-in
- Function Principle:
- Polarized
- Notes:
- On RL110 reflector
- Optic position:
- Axial
- Output type:
- PNP L/D Selectable
- Output Function:
- L/D Selectable
- Switching frequency:
- 400Hz
- Response time:
- 1,25ms
- Operating Voltage:
- 10 30VDC
- No-Load supply current:
- ? 30mA
- Load current:
- ?100mA
- Leakage current:
- ?10?A
- Output voltage drop:
- ?2V@Iload=100mA
- Max ripple content:
- ?10%
- LED indicators:
- Yellow (status output)
- Time delay before availability:
- ?150ms
- Short-circuit protection:
- Yes
- Reverse Polarity Protection:
- Yes
- Emission:
- LED Red (660nm)
- Interference to external light:
- 3.000lux (incandescent lamp), 10.000lux (sunlight)
- Impulsive Overvoltage Protection:
- Yes
- Dimensions:
- M12x1/L=66,3mm
- Weight:
- 28g
- Housing Material:
- Nickel plated brass
- Connections:
- M12 plug
- Active Head Material:
- PMMA
- Operating temperature:
- - 25°C + 70° C
- Diameter/Dimension:
- M12
- Approvals:
- CE cULus Ex: II 3G Ex nA IIC T6 Gc II 3D Ex tc IIIB T85°C Dc
- EMC compatibility:
- EN 60947-5-2
- Shocks and vibrations:
- Vibration IEC 60068-2-6 / Shock IEC 60068-2-27
- Degree of protection:
- IP67
- Supplied Accessories:
- nuts M12 x 1
- Dimensions:
- M12x1/L=65,5mm
- Operating Temperature:
- - 25°C + 70°C (Without freeze)
- Mechanical Protection:
- IP67
