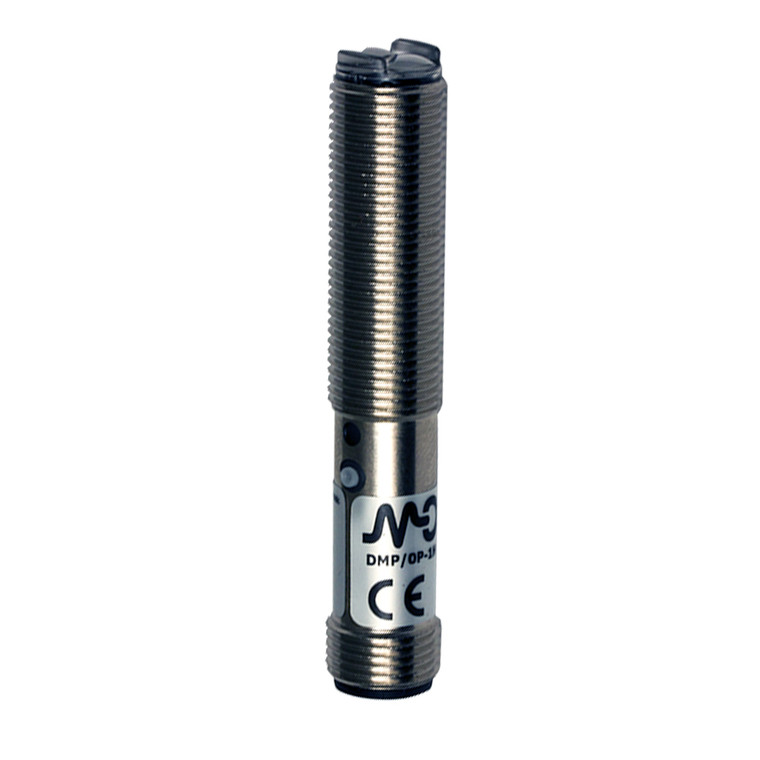

The Datasensing DMP/0P-1H25 Sensors are advanced photoelectric sensors designed for precision and reliability. With a nominal sensing distance of 2.5 meters, these sensors operate on a polarized function principle, ensuring accurate detection even in challenging environments. The sensors feature a PNP L/D selectable output type, allowing for versatile application. They boast a high switching frequency of 400Hz and a rapid response time of 1.25ms, making them ideal for fast-paced industrial settings.
Constructed with a durable nickel-plated brass housing and an active head made of PMMA, these sensors are built to withstand harsh conditions, offering mechanical protection rated at IP67. They are equipped with LED indicators for easy status monitoring and provide robust protection against short-circuits, reverse polarity, and impulsive overvoltage. The sensors are compatible with M12 connections and come with supplied accessories, including M12 x 1 nuts.
Operating within a voltage range of 10 to 30VDC, the sensors maintain a low no-load supply current of ? 30mA and a load current of ?100mA, ensuring energy efficiency. They are designed to handle external light interference up to 3,000 lux from incandescent lamps and 10,000 lux from sunlight. With approvals from CE and cULus, and compliance with EMC compatibility standards EN 60947-5-2, these sensors are a reliable choice for various industrial applications.
- Nominal sensing distance:
- 2,5m
- Thermal drift of Sr:
- ?10% Sr
- Repeat Accuracy:
- 5%
- Function Principle:
- Polarized
- Notes:
- On RL110 reflector
- Optic position:
- Axial
- Output type:
- PNP L/D Selectable
- Output Function:
- L/D Selectable
- Switching frequency:
- 400Hz
- Response time:
- 1,25ms
- Operating Voltage:
- 10 30VDC
- No-Load supply current:
- ? 30mA
- Load current:
- ?100mA
- Leakage current:
- ?10?A
- Output voltage drop:
- ?2V@Iload=100mA
- Max ripple content:
- ?10%
- LED indicators:
- Yellow (status output)
- Time delay before availability:
- ?150ms
- Short-circuit protection:
- Yes
- Reverse Polarity Protection:
- Yes
- Emission:
- LED Red (660nm)
- Interference to external light:
- 3.000lux (incandescent lamp), 10.000lux (sunlight)
- Impulsive Overvoltage Protection:
- Yes
- Housing Material:
- Nickel plated brass
- Connections:
- M12 plug
- Active Head Material:
- PMMA
- Diameter/Dimension:
- M12
- Approvals:
- CE cULus
- EMC compatibility:
- EN 60947-5-2
- Shocks and vibrations:
- Vibration IEC 60068-2-6 / Shock IEC 60068-2-27
- Supplied Accessories:
- nuts M12 x 1
- Dimensions:
- M12x1/L=65,5mm
- Operating Temperature:
- - 25°C + 70°C (Without freeze)
- Mechanical Protection:
- IP67
