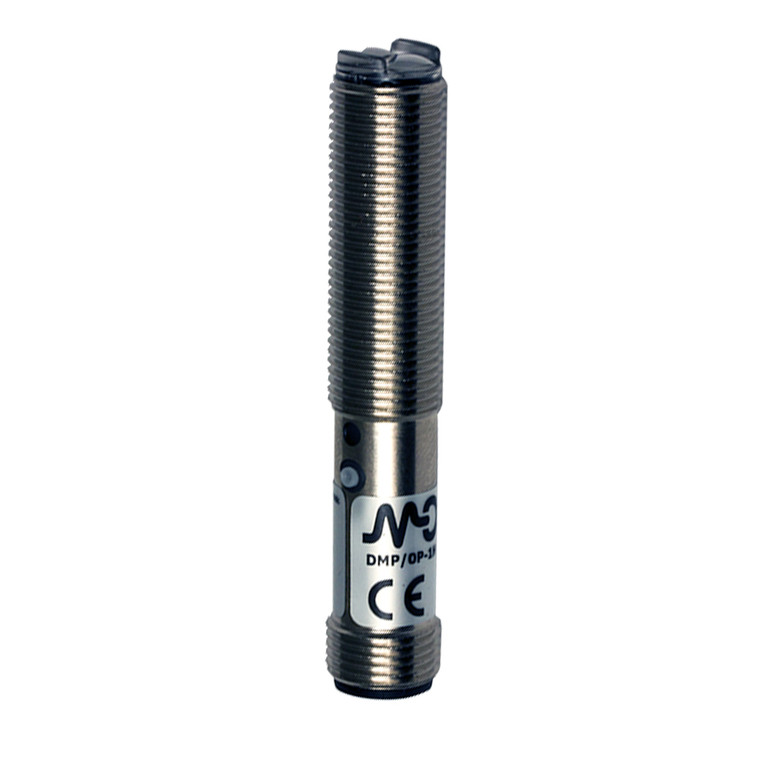

Datasensing DMP/0P-1H25AN Sensors

The Datasensing DMP/0P-1H25AN Sensors are advanced photoelectric sensors designed for precision and reliability. Featuring a polarized function principle, these sensors offer a nominal sensing distance of 2.5 meters and maintain a thermal drift of Sr at ?10% Sr. With a repeat accuracy of 5%, they ensure consistent performance in various applications. The sensors are equipped with a PNP L/D selectable output type and function, allowing for versatile integration into different systems. Operating at a switching frequency of 400Hz and a response time of 1.25ms, these sensors are ideal for high-speed operations. They support an operating voltage range of 10 to 30VDC, with a no-load supply current of ?30mA and a load current of ?100mA. The output voltage drop is minimal at ?2V when the load current is 100mA, and the sensors feature short-circuit and reverse polarity protection for enhanced safety. Constructed with a nickel-plated brass housing and a PMMA active head, the sensors are robust and durable, with an IP67 mechanical protection rating. They are resistant to shocks and vibrations, complying with IEC 60068-2-6 and IEC 60068-2-27 standards. The sensors are also equipped with LED indicators for status output and offer protection against impulsive overvoltage. Designed to withstand external light interference up to 3,000 lux from incandescent lamps and 10,000 lux from sunlight, these sensors are suitable for challenging environments. They are approved with CE cULus Ex certifications and meet EMC compatibility standards as per EN 60947-5-2. Supplied with M12 x 1 nuts, the sensors are easy to install and operate within a temperature range of -25°C to +70°C, ensuring reliable performance without freezing.
