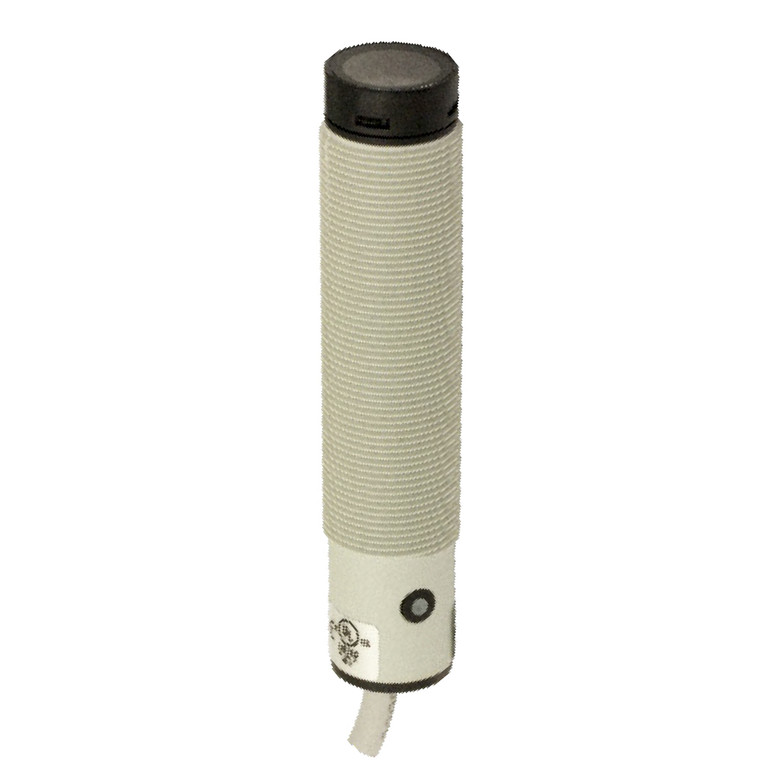

The Datasensing FAI7/BN-0AAN Sensors are advanced photoelectric sensors designed for precise and reliable detection. With a nominal sensing distance of 400mm and a diffuse reflection function principle, these sensors are ideal for medium-distance applications up to 600mm. They feature a sensitivity adjustment trimmer for fine-tuning and offer a repeat accuracy of 5%. The sensors operate with an NPN NO+NC output type, providing both normally open and normally closed functions.
Built to withstand challenging environments, the FAI7/BN-0AAN Sensors are certified with II 3G Ex nA IIC T6 and II 3D Ex tc IIIB T85°C ratings, ensuring safe operation in explosive atmospheres. They are housed in a robust M18 PBT/PC casing with an IP67 mechanical protection rating, making them resistant to dust and water ingress. The sensors are equipped with LED indicators for easy status monitoring and offer short-circuit, overvoltage, and reverse polarity protection for enhanced durability.
Operating within a voltage range of 10 to 30VDC, these sensors have a low no-load supply current of ?30mA and a load current capacity of ?100mA. They are designed to handle interference from external light sources, with a tolerance of up to 3000lux from incandescent lamps and 10000lux from sunlight. The sensors come with a 2m PVC cable for easy installation and are supplied with M18 x 1 nuts and a screwdriver for convenience. Suitable for temperatures ranging from -25°C to +70°C, the Datasensing FAI7/BN-0AAN Sensors are a reliable choice for industrial automation and safety applications.
- Nominal sensing distance:
- 400mm
- Thermal drift of Sr:
- ?10% Sr
- Repeat Accuracy:
- 5%
- Sensitivity adjustment:
- Trimmer
- Function Principle:
- Diffuse reflection (medium distance, ?600mm)
- Notes:
- white target Kodak 90% 200 x 200mm
- Optic position:
- Axial
- Output type:
- NPN NO+NC
- Output Function:
- NO+NC
- Switching frequency:
- 250Hz
- Response time:
- 2ms
- Operating Voltage:
- 10 30VDC
- No-Load supply current:
- ? 30mA
- Load current:
- ?100mA
- Leakage current:
- ?10?A
- Output voltage drop:
- ?2V@Iload=100mA
- Max ripple content:
- ?10%
- LED indicators:
- Yellow (Lon) or output status Lo/Do
- Time delay before availability:
- ?200ms
- Short-circuit protection:
- Short circuit (autoreset), Overvoltage
- Reverse Polarity Protection:
- Polarity inversal, Inpulsive voltage
- Emission:
- LED Infrared (880nm)
- Interference to external light:
- 3000lux (incandescent lamp), 10000lux (sunlight)
- Housing Material:
- PBT / PC cable exit
- Connections:
- 2m PVC cable
- Active Head Material:
- PC
- Tightening torque:
- 1Nm
- Optical fibre material:
- PC
- Diameter/Dimension:
- M18
- Approvals:
- CE cULus Ex: II 3G Ex nA IIC T6 Gc II 3D Ex tc IIIB T85°C Dc
- EMC compatibility:
- EN 60947-5-2
- Shocks and vibrations:
- Vibration IEC 60068-2-6 / Shock IEC 60068-2-27
- Supplied Accessories:
- nuts M18 x 1, screwdriver
- Dimensions:
- M18 x 1/L=67,5mm
- Operating Temperature:
- - 25°C + 70°C (Without freeze)
- Mechanical Protection:
- IP67
