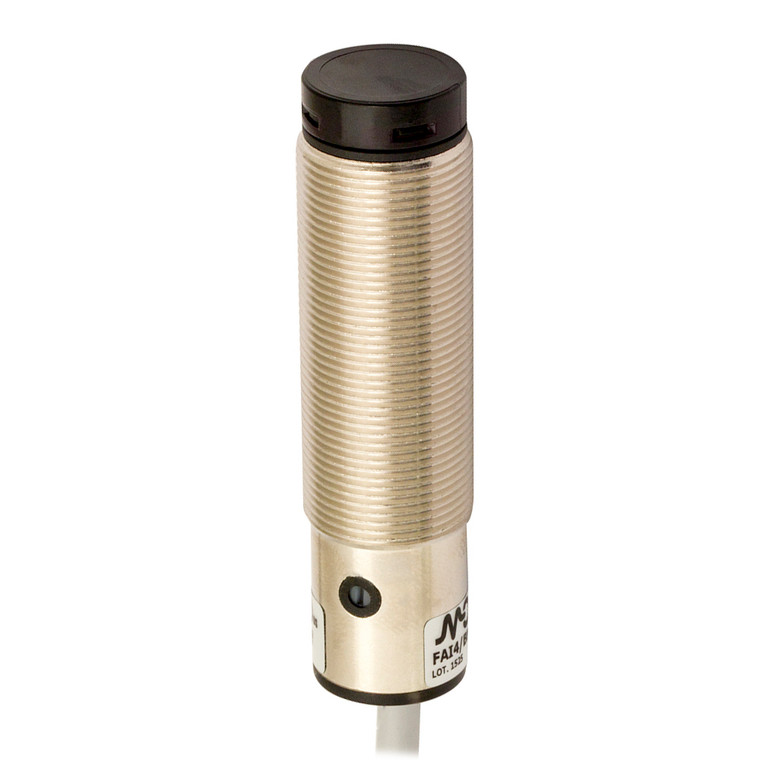

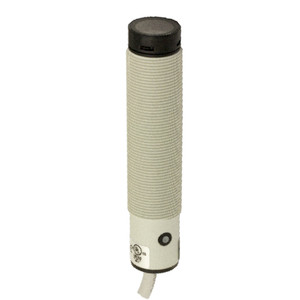

The Datasensing FAI7/BN-1A Sensors offer a comprehensive solution for your sensing needs, featuring a complete range of M18 sensors powered by a 10...30 Vdc supply. Designed with both axial and radial optics on a flat surface, these sensors are ideal for detecting transparent objects using retro-reflective models with red emission. With an IP67 protection degree, they are built to withstand harsh environments, available in both metallic and plastic housings. Each model includes sensitivity adjustment via a trimmer, ensuring precise operation with a nominal sensing distance of 400mm and a thermal drift of ?10% Sr. The sensors operate on a diffuse reflection principle, suitable for medium distances up to 600mm, and are equipped with NPN NO+NC output types. They boast a high switching frequency of 250Hz and a rapid response time of 2ms, making them highly efficient for fast-paced applications. The sensors are protected against electric damages, featuring short-circuit, overvoltage, and reverse polarity protection. They are CE and cULus approved, ensuring compliance with international standards. The robust design includes a nickel-plated brass housing with a PC cable exit, and they are supplied with M18 x 1 nuts and a screwdriver for easy installation. Withstanding temperatures from -25°C to +70°C, these sensors are reliable in various conditions, offering total protection and performance.
- Nominal sensing distance:
- 400mm
- Thermal drift of Sr:
- ?10% Sr
- Repeat Accuracy:
- 5%
- Sensitivity adjustment:
- Trimmer
- Function Principle:
- Diffuse reflection (medium distance, ?600mm)
- Notes:
- white target Kodak 90% 200 x 200mm
- Optic position:
- Axial
- Output type:
- NPN NO+NC
- Output Function:
- NO+NC
- Switching frequency:
- 250Hz
- Response time:
- 2ms
- Operating Voltage:
- 10 30VDC
- No-Load supply current:
- ? 30mA
- Load current:
- ?100mA
- Leakage current:
- ?10?A
- Output voltage drop:
- ?2V@Iload=100mA
- Max ripple content:
- ?10%
- LED indicators:
- Yellow (Lon) or output status Lo/Do
- Time delay before availability:
- ?200ms
- Short-circuit protection:
- Short circuit (autoreset), Overvoltage
- Reverse Polarity Protection:
- Polarity inversal, Inpulsive voltage
- Emission:
- LED Infrared (880nm)
- Interference to external light:
- 3000lux (incandescent lamp), 10000lux (sunlight)
- Weight:
- 130g
- Housing Material:
- Nickel plated brass / PC cable exit
- Connections:
- 2m PVC cable
- Active Head Material:
- PC
- Tightening torque:
- 25Nm
- Operating temperature:
- - 25°C + 70° C (Without freeze)
- Diameter/Dimension:
- M18
- Approvals:
- CE cULus
- EMC compatibility:
- EN 60947-5-2
- Shocks and vibrations:
- Vibration IEC 60068-2-6 / Shock IEC 60068-2-27
- Degree of protection:
- IP67
- Supplied Accessories:
- nuts M18 x 1, screwdriver
- Operating Temperature:
- - 25°C + 70°C (Without freeze)
- Mechanical Protection:
- IP67
