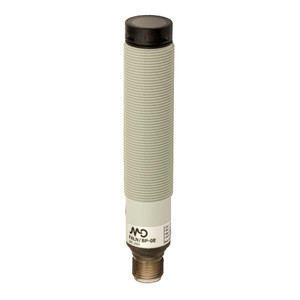

Datasensing FAI7/BP-0EAN Sensors
Datasensing
$110.04
The Datasensing FAI7/BP-0EAN Sensors are advanced photoelectric sensors designed for precise and reliable detection. Featuring a diffuse reflection function with a nominal sensing distance of 400mm, these sensors are ideal for medium-distance applications. The M18 sensors operate on a 10...30 VDC power supply and are equipped with both axial and radial optics, ensuring versatility in various setups.
With a robust IP67 protection rating, these sensors are safeguarded against dust and water ingress, making them suitable for challenging environments. The metallic or plastic housing options provide additional durability, while the sensitivity adjustment via a trimmer allows for fine-tuning to meet specific needs.
The sensors boast a high switching frequency of 250Hz and a rapid response time of 2ms, ensuring quick and accurate performance. They are equipped with PNP NO+NC output types, offering flexibility in integration with different systems. The LED indicators provide clear status updates, enhancing user convenience.
Designed with safety in mind, the sensors include short-circuit protection with an autoreset feature, overvoltage protection, and reverse polarity protection. They are also resistant to interference from external light sources, withstanding up to 3000lux from incandescent lamps and 10000lux from sunlight.
The Datasensing FAI7/BP-0EAN Sensors are CE and cULus listed, meeting stringent safety and performance standards. Supplied with M18 x 1 nuts and a screwdriver, these sensors are ready for easy installation and reliable operation in a wide range of industrial applications.
- Nominal sensing distance:
- 400mm
- Thermal drift of Sr:
- ?10% Sr
- Repeat Accuracy:
- 5%
- Sensitivity adjustment:
- Trimmer
- Function Principle:
- Diffuse reflection (medium distance, ?600mm)
- Notes:
- white target Kodak 90% 200 x 200mm
- Optic position:
- Axial
- Output type:
- PNP NO+NC
- Output Function:
- NO+NC
- Switching frequency:
- 250Hz
- Response time:
- 2ms
- Operating Voltage:
- 10 30VDC
- No-Load supply current:
- ? 30mA
- Load current:
- ?100mA
- Leakage current:
- ?10?A
- Output voltage drop:
- ?2V@Iload=100mA
- Max ripple content:
- ?10%
- LED indicators:
- Yellow (Lon) or output status Lo/Do
- Time delay before availability:
- ?200ms
- Short-circuit protection:
- Short circuit (autoreset), Overvoltage
- Reverse Polarity Protection:
- Polarity inversal, Inpulsive voltage
- Emission:
- LED Infrared (880nm)
- Interference to external light:
- 3000lux (incandescent lamp), 10000lux (sunlight)
- Weight:
- 30g
- Housing Material:
- PBT / PC plug
- Connections:
- M12 plug
- Active Head Material:
- PC
- Tightening torque:
- 1Nm
- Operating temperature:
- - 25°C + 70° C (Without freeze)
- Diameter/Dimension:
- M18
- Approvals:
- CE cULus Ex: II 3G Ex nA IIC T6 Gc II 3D Ex tc IIIB T85°C Dc
- EMC compatibility:
- EN 60947-5-2
- Shocks and vibrations:
- Vibration IEC 60068-2-6 / Shock IEC 60068-2-27
- Degree of protection:
- IP67
- Supplied Accessories:
- nuts M18 x 1, screwdriver
- Operating Temperature:
- - 25°C + 70°C (Without freeze)
- Mechanical Protection:
- IP67
