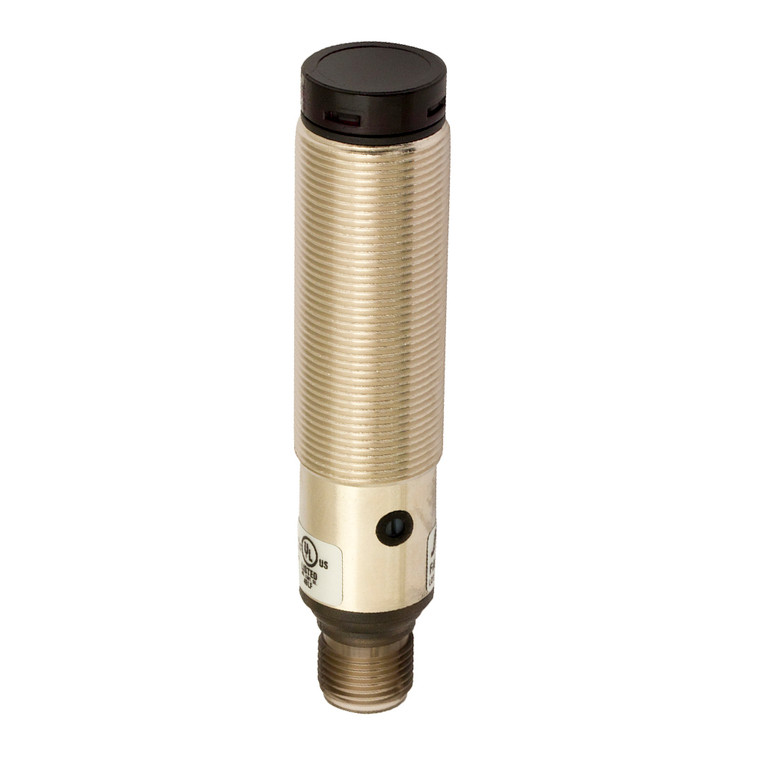

Datasensing FAI7/BP-1E Sensors

The Datasensing FAI7/BP-1E Sensors offer a comprehensive range of M18 sensors designed for optimal performance with a 10...30 Vdc power supply. These sensors feature both axial and radial optics with a flat surface, making them versatile for various applications. The retro-reflective models are specifically engineered for detecting transparent objects, utilizing a red emission and boasting an IP67 protection degree for robust durability. Available in both metallic and plastic housings, these sensors provide sensitivity adjustment for precise operation across all models. They are fully protected against any type of electric damages, ensuring reliable performance. Key specifications include a nominal sensing distance of 400mm, a thermal drift of Sr at ?10% Sr, and a repeat accuracy of 5%. The sensors operate on a diffuse reflection principle for medium distances up to 600mm, with a white target Kodak 90% 200 x 200mm. The optic position is axial, and the output type is PNP NO+NC, offering both NO and NC output functions. With a switching frequency of 250Hz and a response time of 2ms, these sensors are highly responsive. They operate within a voltage range of 10…30VDC, with a no-load supply current of ? 30mA and a load current of ?100mA. Additional features include short-circuit protection with autoreset, overvoltage, and reverse polarity protection. The sensors emit LED Infrared at 880nm and are resistant to external light interference up to 3000lux from incandescent lamps and 10000lux from sunlight. The housing is made of nickel-plated brass with a PC plug, and the active head material is PC. The sensors are designed to withstand operating temperatures from -25°C to +70°C without freezing, and they come with supplied accessories such as M18 x 1 nuts and a screwdriver. With CE and cULus approvals, these sensors meet high standards of safety and performance.
