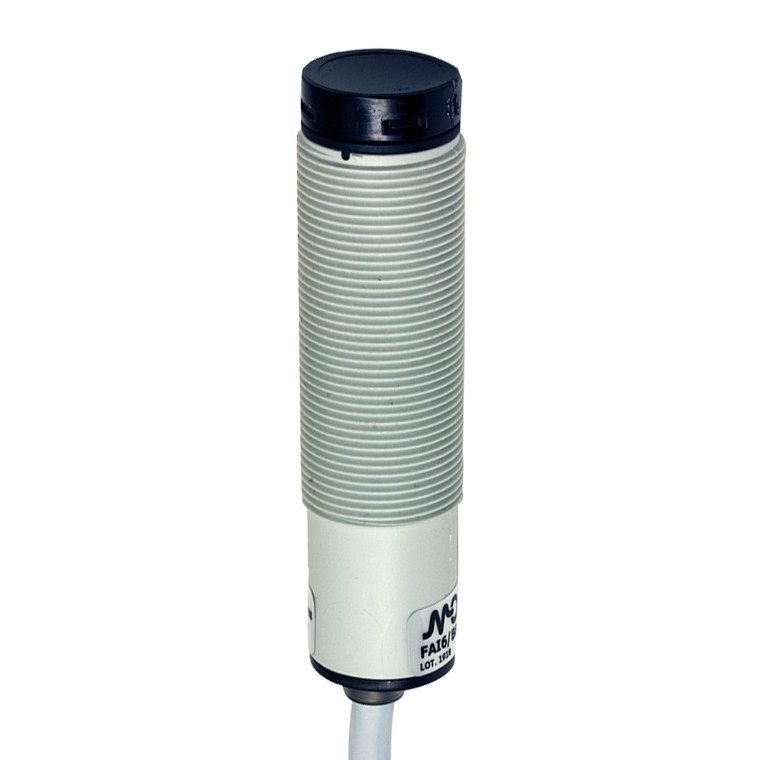

Datasensing FAIC/BN-0A Sensors
Datasensing
$67.89
The Datasensing FAIC/BN-0A Sensors are designed for precision and reliability in detecting transparent objects with their axial retroreflective function. These sensors boast a nominal sensing distance of 5 meters and are equipped with a robust NPN NO+NC output type. With a compact M18 design, they feature a durable plastic housing and a 2-meter PVC cable for easy installation. The sensors operate efficiently within a voltage range of 10 to 30 VDC, ensuring minimal power consumption with a no-load supply current of ? 30mA.
Engineered for resilience, the FAIC/BN-0A sensors offer total protection against electric damages, including short-circuit and reverse polarity protection. They are capable of withstanding external light interference up to 5000 lux from incandescent lamps and 10000 lux from sunlight, making them suitable for various industrial environments. The sensors are equipped with LED indicators for easy status monitoring and have a high switching frequency of 250Hz, with a rapid response time of 2ms.
Built to endure harsh conditions, these sensors operate within a temperature range of -25°C to +70°C and are protected by an IP67-rated enclosure, ensuring resistance to dust and water ingress. The FAIC/BN-0A sensors are CE and cULus approved, meeting international standards for safety and performance. Ideal for applications requiring precise object detection, these sensors are a reliable choice for enhancing automation and efficiency in your operations.
- Nominal sensing distance:
- 5m
- Thermal drift of Sr:
- ?10% Sr
- Repeat Accuracy:
- 5%
- Sensitivity adjustment:
- No
- Function Principle:
- Retroreflective
- Notes:
- On RL110 reflector
- Optic position:
- Axial
- Output type:
- NPN NO+NC
- Output Function:
- NO+NC
- Switching frequency:
- 250Hz
- Response time:
- 2ms
- Operating Voltage:
- 10 30VDC
- No-Load supply current:
- ? 30mA
- Load current:
- ?100mA
- Leakage current:
- ?10?A
- Output voltage drop:
- ?2V@Iload=100mA
- Max ripple content:
- ?10%
- LED indicators:
- Yellow (Lon) or output status Lo/Do
- Time delay before availability:
- ?200ms
- Short-circuit protection:
- Short circuit (autoreset), Overvoltage
- Reverse Polarity Protection:
- Polarity inversal, Inpulsive voltage
- Emission:
- LED Infrared (880nm)
- Interference to external light:
- 5000lux (incandescent lamp), 10000lux (sunlight)
- Weight:
- 100g
- Housing Material:
- PBT / PC cable exit
- Connections:
- 2m PVC cable
- Active Head Material:
- PC
- Tightening torque:
- 1Nm
- Operating temperature:
- - 25°C + 70° C (Without freeze)
- Diameter/Dimension:
- M18
- Approvals:
- CE cULus
- EMC compatibility:
- EN 60947-5-2
- Shocks and vibrations:
- Vibration IEC 60068-2-6 / Shock IEC 60068-2-27
- Degree of protection:
- IP67
- Supplied Accessories:
- nuts M18 x 1
- Operating Temperature:
- - 25°C + 70°C (Without freeze)
- Mechanical Protection:
- IP67
