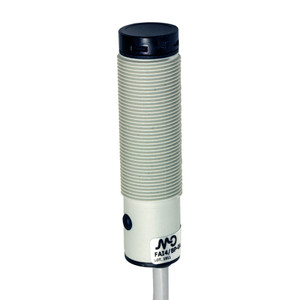

Datasensing FAIC/BP-0AAN Sensors
Datasensing
$91.67
The Datasensing FAIC/BP-0AAN Sensors are high-performance photoelectric sensors designed for reliable and precise detection. Featuring a retroreflective function with a nominal sensing distance of 5 meters, these sensors are ideal for various industrial applications. The robust M18 housing is constructed from durable PBT/PC materials, ensuring long-lasting performance even in challenging environments. With a high switching frequency of 250Hz and a rapid response time of 2ms, these sensors provide quick and accurate detection.
Equipped with PNP NO+NC output types, the sensors offer versatile connectivity options through a 2-meter PVC cable. The sensors are designed to withstand harsh conditions, with an IP67 mechanical protection rating and approvals for use in explosive atmospheres (II 3G Ex nA IIC T6, II 3D Ex tD A22). The sensors are also equipped with short-circuit and overvoltage protection, ensuring safe and reliable operation.
The LED infrared emission at 880nm and high resistance to external light interference (up to 10,000 lux sunlight) make these sensors suitable for a wide range of lighting conditions. The sensors are easy to install with supplied M18 x 1 nuts and feature a compact design with dimensions of M18 x 1/L=67.5mm. Operating efficiently within a voltage range of 10
30VDC, these sensors are an excellent choice for applications requiring precision and durability.
- Nominal sensing distance:
- 5m
- Thermal drift of Sr:
- ?10% Sr
- Repeat Accuracy:
- 5%
- Sensitivity adjustment:
- No
- Function Principle:
- Retroreflective
- Notes:
- On RL110 reflector
- Optic position:
- Axial
- Output type:
- PNP NO+NC
- Output Function:
- NO+NC
- Switching frequency:
- 250Hz
- Response time:
- 2ms
- Operating Voltage:
- 10 30VDC
- No-Load supply current:
- ? 30mA
- Load current:
- ?100mA
- Leakage current:
- ?10?A
- Output voltage drop:
- ?2V@Iload=100mA
- Max ripple content:
- ?10%
- LED indicators:
- Yellow (Lon) or output status Lo/Do
- Time delay before availability:
- ?200ms
- Short-circuit protection:
- Short circuit (autoreset), Overvoltage
- Reverse Polarity Protection:
- Polarity inversal, Inpulsive voltage
- Emission:
- LED Infrared (880nm)
- Interference to external light:
- 5000lux (incandescent lamp), 10000lux (sunlight)
- Housing Material:
- PBT / PC cable exit
- Connections:
- 2m PVC cable
- Active Head Material:
- PC
- Tightening torque:
- 1Nm
- Diameter/Dimension:
- M18
- Approvals:
- CE cULus Ex: II 3G Ex nA IIC T6 Gc II 3D Ex tc IIIB T85°C Dc
- EMC compatibility:
- EN 60947-5-2
- Shocks and vibrations:
- Vibration IEC 60068-2-6 / Shock IEC 60068-2-27
- Supplied Accessories:
- nuts M18 x 1
- Dimensions:
- M18 x 1/L=67,5mm
- Operating Temperature:
- - 25°C + 70°C (Without freeze)
- Mechanical Protection:
- IP67
- User Manuals:
- View
