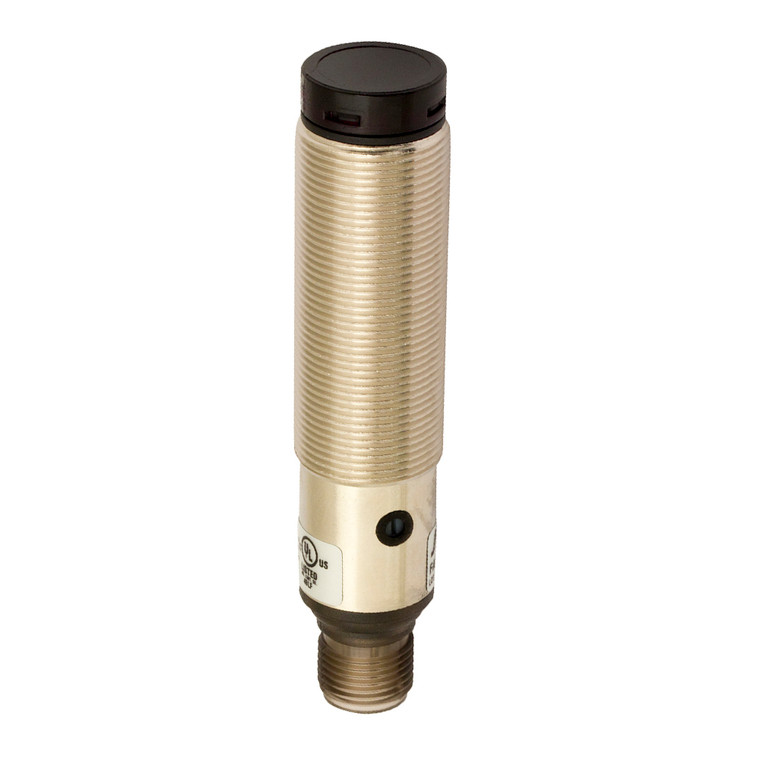

Datasensing FAID/BN-1E Sensors
Datasensing
$84.12
The Datasensing FAID/BN-1E Sensors are high-performance photoelectric sensors designed for precise and reliable detection. Featuring an axial receiver with a nominal sensing distance of 20 meters, these sensors are equipped with NPN NO+NC output types, ensuring versatile application in various industrial environments. The robust construction includes a nickel-plated brass housing with a PC plug, providing durability and resistance to harsh conditions. With a sensitivity adjustment trimmer, users can fine-tune the sensor's performance to suit specific needs. The sensors operate on a 10...30 VDC power supply and offer a high switching frequency of 250Hz, with a rapid response time of 2ms.
Engineered for total protection against electrical damages, the FAID/BN-1E Sensors include short-circuit and overvoltage protection, as well as reverse polarity protection. The IP67 protection degree ensures the sensors are dust-tight and water-resistant, making them suitable for challenging environments. The sensors are also equipped with LED indicators for easy status monitoring.
With approvals from CE and cULus, these sensors meet international standards for safety and performance. The package includes M18 x 1 nuts and a screwdriver for easy installation. Ideal for applications requiring high accuracy and reliability, the Datasensing FAID/BN-1E Sensors are a dependable choice for industrial automation and control systems.
- Nominal sensing distance:
- 20m
- Thermal drift of Sr:
- ?10% Sr
- Repeat Accuracy:
- 5%
- Sensitivity adjustment:
- Trimmer
- Function Principle:
- Receiver
- Emitter/Receiver:
- Receiver
- Optic position:
- Axial
- Output type:
- NPN NO+NC
- Output Function:
- NO+NC
- Switching frequency:
- 250Hz
- Response time:
- 2ms
- Operating Voltage:
- 10 30VDC
- No-Load supply current:
- ? 25mA
- Load current:
- ?100mA
- Leakage current:
- ?10?A
- Output voltage drop:
- ?2V@Iload=100mA
- Max ripple content:
- ?10%
- LED indicators:
- Yellow (Lon) or output status Lo/Do
- Time delay before availability:
- ?200ms
- Short-circuit protection:
- Short circuit (autoreset), Overvoltage
- Reverse Polarity Protection:
- Polarity inversal, Inpulsive voltage
- Emission:
- LED Infrared (880nm)
- Interference to external light:
- 5000lux (incandescent lamp), 10000lux (sunlight)
- Weight:
- 100g
- Housing Material:
- Nickel plated brass / PC plug
- Connections:
- M12 plug
- Active Head Material:
- PC
- Tightening torque:
- 25Nm
- Operating temperature:
- - 25°C + 70° C (Without freeze)
- Diameter/Dimension:
- M18
- Approvals:
- CE cULus
- EMC compatibility:
- EN 60947-5-2
- Shocks and vibrations:
- Vibration IEC 60068-2-6 / Shock IEC 60068-2-27
- Degree of protection:
- IP67
- Supplied Accessories:
- nuts M18 x 1, screwdriver
- Operating Temperature:
- - 25°C + 70°C (Without freeze)
- Mechanical Protection:
- IP67
