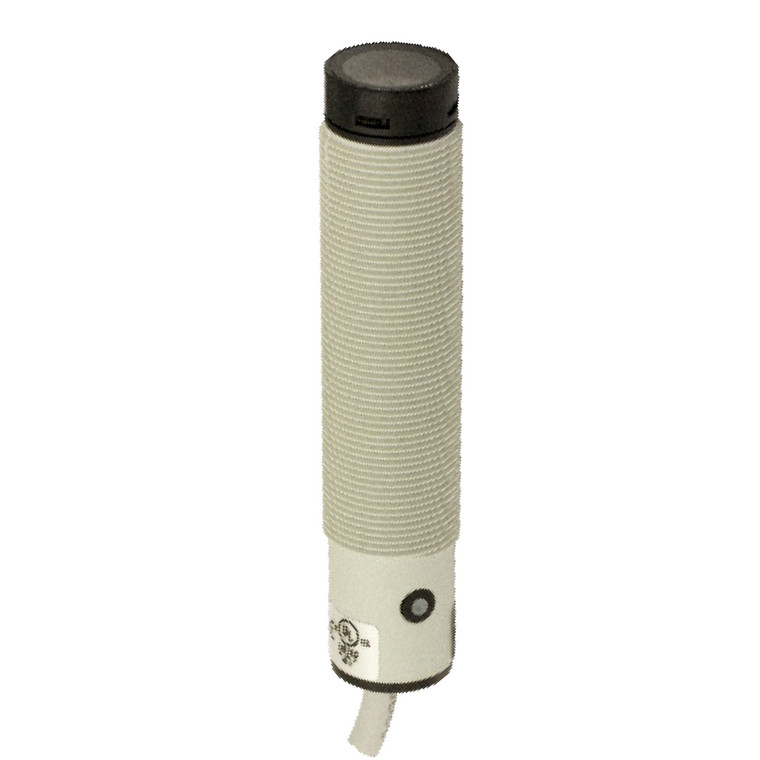

Datasensing FAID/BP-0A Sensors
Datasensing
$80.50
The Datasensing FAID/BP-0A Sensors offer a comprehensive range of M18 sensors designed for optimal performance with a 10...30 Vdc power supply. These sensors feature both axial and radial optics with a flat surface, making them ideal for various applications. The retro-reflective models are specifically designed for detecting transparent objects, utilizing a red emission and boasting an IP67 protection degree for enhanced durability.
Available in both metallic and plastic housings, these sensors provide flexibility in installation and application. Each model includes sensitivity adjustment via a trimmer, ensuring precise detection capabilities. The sensors are equipped with total protection against any type of electric damages, including short-circuit protection with auto-reset, overvoltage, and reverse polarity protection.
With a nominal sensing distance of 20m and a thermal drift of Sr at ?10% Sr, these sensors maintain high accuracy and reliability. The repeat accuracy is rated at 5%, and the output type is PNP NO+NC, offering versatile output functions. The sensors operate at a switching frequency of 250Hz with a response time of just 2ms, ensuring quick and efficient performance.
The Datasensing FAID/BP-0A Sensors are designed to withstand harsh environments, with an operating temperature range of -25°C to +70°C and EMC compatibility with EN 60947-5-2 standards. They are also resistant to shocks and vibrations as per IEC 60068-2-6 and IEC 60068-2-27 standards. The sensors come with supplied accessories, including M18 x 1 nuts and a screwdriver, for easy installation.
These sensors are CE and cULus listed, ensuring compliance with international safety standards. With LED indicators for output status and a robust design, the Datasensing FAID/BP-0A Sensors are a reliable choice for industrial applications requiring precise and durable sensing solutions.
- Nominal sensing distance:
- 20m
- Thermal drift of Sr:
- ?10% Sr
- Repeat Accuracy:
- 5%
- Sensitivity adjustment:
- Trimmer
- Function Principle:
- Receiver
- Emitter/Receiver:
- Receiver
- Optic position:
- Axial
- Output type:
- PNP NO+NC
- Output Function:
- NO+NC
- Switching frequency:
- 250Hz
- Response time:
- 2ms
- Operating Voltage:
- 10 30VDC
- No-Load supply current:
- ? 25mA
- Load current:
- ?100mA
- Leakage current:
- ?10?A
- Output voltage drop:
- ?2V@Iload=100mA
- Max ripple content:
- ?10%
- LED indicators:
- Yellow (Lon) or output status Lo/Do
- Time delay before availability:
- ?200ms
- Short-circuit protection:
- Short circuit (autoreset), Overvoltage
- Reverse Polarity Protection:
- Polarity inversal, Inpulsive voltage
- Emission:
- LED Infrared (880nm)
- Interference to external light:
- 5000lux (incandescent lamp), 10000lux (sunlight)
- Weight:
- 50g
- Housing Material:
- PBT / PC cable exit
- Connections:
- 2m PVC cable
- Active Head Material:
- PC
- Tightening torque:
- 1Nm
- Operating temperature:
- - 25°C + 70° C (Without freeze)
- Diameter/Dimension:
- M18
- Approvals:
- CE cULus
- EMC compatibility:
- EN 60947-5-2
- Shocks and vibrations:
- Vibration IEC 60068-2-6 / Shock IEC 60068-2-27
- Degree of protection:
- IP67
- Supplied Accessories:
- nuts M18 x 1, screwdriver
- Operating Temperature:
- - 25°C + 70°C (Without freeze)
- Mechanical Protection:
- IP67
