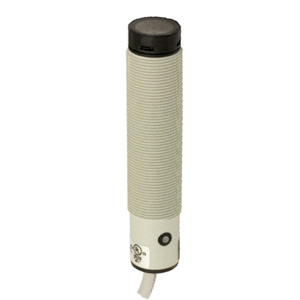

The Datasensing FAID/BP-0AAN Sensors are advanced photoelectric sensors designed for precise and reliable detection. With a nominal sensing distance of 20 meters, these sensors feature a trimmer for sensitivity adjustment, ensuring optimal performance in various applications. The receiver operates on a PNP NO+NC output type, with a switching frequency of 250Hz and a rapid response time of 2ms.
Constructed with a durable PBT/PC housing and a 2-meter PVC cable, the sensors are built to withstand harsh environments, offering IP67 mechanical protection. They are equipped with LED infrared emission at 880nm, providing excellent interference resistance to external light sources up to 5000lux for incandescent lamps and 10000lux for sunlight.
The sensors are designed with safety and reliability in mind, featuring short-circuit protection with autoreset, overvoltage, and reverse polarity protection. They are approved with CE and cULus Ex certifications, meeting the standards of II 3G Ex nA IIC T6 Gc and II 3D Ex tc IIIB T85°C Dc.
Ideal for industrial applications, these sensors come with supplied accessories, including M18 x 1 nuts and a screwdriver, and are compatible with EMC standard EN 60947-5-2. They can operate in temperatures ranging from -25°C to +70°C, making them suitable for a wide range of environments.
- Nominal sensing distance:
- 20m
- Thermal drift of Sr:
- ?10% Sr
- Repeat Accuracy:
- 5%
- Sensitivity adjustment:
- Trimmer
- Function Principle:
- Receiver
- Emitter/Receiver:
- Receiver
- Optic position:
- Axial
- Output type:
- PNP NO+NC
- Output Function:
- NO+NC
- Switching frequency:
- 250Hz
- Response time:
- 2ms
- Operating Voltage:
- 10 30VDC
- No-Load supply current:
- ? 25mA
- Load current:
- ?100mA
- Leakage current:
- ?10?A
- Output voltage drop:
- ?2V@Iload=100mA
- Max ripple content:
- ?10%
- LED indicators:
- Yellow (Lon) or output status Lo/Do
- Time delay before availability:
- ?200ms
- Short-circuit protection:
- Short circuit (autoreset), Overvoltage
- Reverse Polarity Protection:
- Polarity inversal, Inpulsive voltage
- Emission:
- LED Infrared (880nm)
- Interference to external light:
- 5000lux (incandescent lamp), 10000lux (sunlight)
- Housing Material:
- PBT / PC cable exit
- Connections:
- 2m PVC cable
- Active Head Material:
- PC
- Tightening torque:
- 1Nm
- Diameter/Dimension:
- M18
- Approvals:
- CE cULus Ex: II 3G Ex nA IIC T6 Gc II 3D Ex tc IIIB T85°C Dc
- EMC compatibility:
- EN 60947-5-2
- Shocks and vibrations:
- Vibration IEC 60068-2-6 / Shock IEC 60068-2-27
- Supplied Accessories:
- nuts M18 x 1, screwdriver
- Dimensions:
- M18 x 1/L=67,5mm
- Operating Temperature:
- - 25°C + 70°C (Without freeze)
- Mechanical Protection:
- IP67
