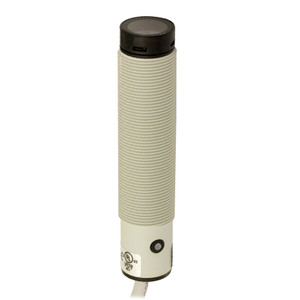

Datasensing FAIH/X0-2E Sensors
Datasensing
$69.92
The Datasensing FAIH/X0-2E Sensors are advanced photoelectric sensors designed for precise and reliable detection. Featuring a radial 90° optic position, these sensors are equipped with a 15-meter nominal sensing distance and are ideal for applications requiring high accuracy and stability. With a robust M18 housing made from durable PBT and PC materials, these sensors are built to withstand harsh environments, offering IP67 protection against dust and water ingress. The sensors operate on a 10...30 VDC power supply and have a low no-load supply current of ? 25mA, ensuring energy efficiency. They are equipped with LED indicators for easy status monitoring and have a fast response time of 2ms, making them suitable for high-speed applications. The FAIH/X0-2E Sensors are CE and cULus approved, ensuring compliance with international safety standards. With features like reverse polarity protection and EMC compatibility, these sensors provide total protection against electrical damages, making them a reliable choice for industrial automation and control systems.
- Nominal sensing distance:
- 15m
- Thermal drift of Sr:
- ?10% Sr
- Repeat Accuracy:
- 5%
- Sensitivity adjustment:
- No
- Function Principle:
- Emitter with check
- Emitter/Receiver:
- Emitter
- Check Input:
- BK/2 connected to 0Vdc swithing off the emission
- Optic position:
- Radial 90°
- Switching frequency:
- 250Hz
- Response time:
- 2ms
- Operating Voltage:
- 10 30VDC
- No-Load supply current:
- ? 25mA
- Max ripple content:
- ?10%
- LED indicators:
- Yellow (powerON)
- Time delay before availability:
- ?200ms
- Reverse Polarity Protection:
- Polarity inversal, Inpulsive voltage
- Emission:
- LED Infrared (880nm)
- Weight:
- 30g
- Housing Material:
- PBT / PC plug
- Connections:
- M12 plug
- Active Head Material:
- PC
- Tightening torque:
- 1Nm
- Operating temperature:
- - 25°C + 70° C (Without freeze)
- Diameter/Dimension:
- M18
- Approvals:
- CE cULus
- EMC compatibility:
- EN 60947-5-2
- Shocks and vibrations:
- Vibration IEC 60068-2-6 / Shock IEC 60068-2-27
- Degree of protection:
- IP67
- Supplied Accessories:
- nuts M18 x 1
- Operating Temperature:
- - 25°C + 70°C (Without freeze)
- Mechanical Protection:
- IP67
