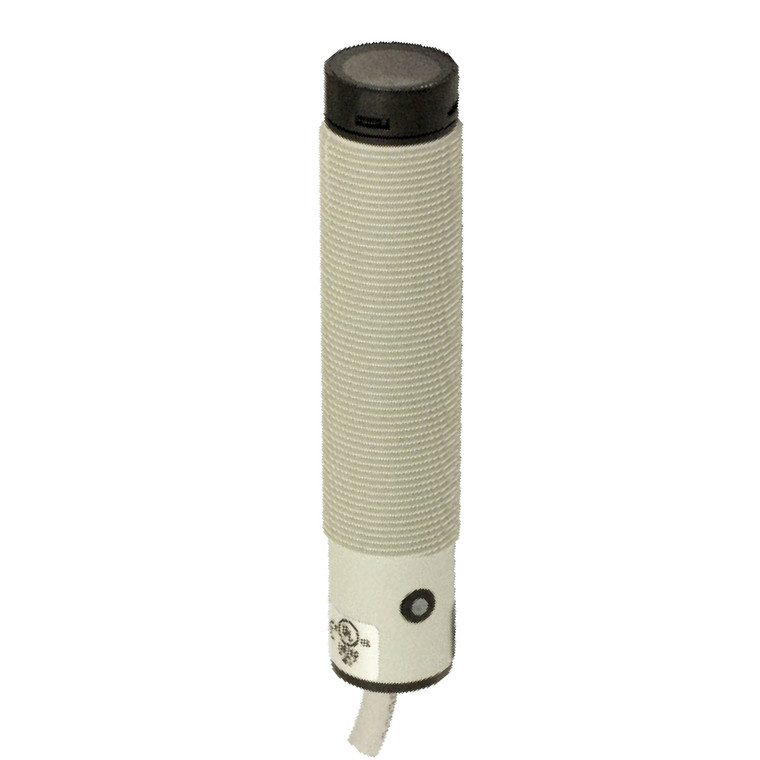

Datasensing FAIM/BN-0A Sensors
Datasensing
$83.36
The Datasensing FAIM/BN-0A Sensors are designed for precision and reliability in various industrial applications. These photoelectric sensors feature an axial retroreflective design with a nominal sensing distance of 5 meters, making them ideal for detecting transparent objects. The sensors operate on a 10...30 VDC power supply and offer a robust NPN NO+NC output function. With a sensitivity adjustment trimmer, users can fine-tune the sensor's performance to suit specific needs.
Constructed with a durable plastic housing and a 2-meter axial cable, the FAIM/BN-0A sensors are built to withstand harsh environments, boasting an IP67 protection degree. They are equipped with LED indicators for easy status monitoring and provide total protection against electric damages, including short-circuit and reverse polarity protection.
The sensors are designed to handle a wide range of operating temperatures from -25°C to +70°C, ensuring reliable performance in various conditions. With a high switching frequency of 250Hz and a quick response time of 2ms, these sensors are perfect for fast-paced industrial settings. The FAIM/BN-0A sensors are CE and cULus listed, ensuring compliance with international safety standards. Supplied with M18 x 1 nuts and a screwdriver, these sensors are ready for immediate installation and use.
- Nominal sensing distance:
- 5m
- Thermal drift of Sr:
- ?10% Sr
- Repeat Accuracy:
- 5%
- Sensitivity adjustment:
- Trimmer
- Function Principle:
- Retroreflective
- Notes:
- On RL110 reflector
- Optic position:
- Axial
- Output type:
- NPN NO+NC
- Output Function:
- NO+NC
- Switching frequency:
- 250Hz
- Response time:
- 2ms
- Operating Voltage:
- 10 30VDC
- No-Load supply current:
- ? 30mA
- Load current:
- ?100mA
- Leakage current:
- ?10?A
- Output voltage drop:
- ?2V@Iload=100mA
- Max ripple content:
- ?10%
- LED indicators:
- Yellow (Lon) or output status Lo/Do
- Time delay before availability:
- ?200ms
- Short-circuit protection:
- Short circuit (autoreset), Overvoltage
- Reverse Polarity Protection:
- Polarity inversal, Inpulsive voltage
- Emission:
- LED Infrared (880nm)
- Interference to external light:
- 5000lux (incandescent lamp), 10000lux (sunlight)
- Weight:
- 50g
- Housing Material:
- PBT / PC cable exit
- Connections:
- 2m PVC cable
- Active Head Material:
- PC
- Tightening torque:
- 1Nm
- Operating temperature:
- - 25°C + 70° C (Without freeze)
- Diameter/Dimension:
- M18
- Approvals:
- CE cULus
- EMC compatibility:
- EN 60947-5-2
- Shocks and vibrations:
- Vibration IEC 60068-2-6 / Shock IEC 60068-2-27
- Degree of protection:
- IP67
- Supplied Accessories:
- nuts M18 x 1, screwdriver
- Operating Temperature:
- - 25°C + 70°C (Without freeze)
- Mechanical Protection:
- IP67
