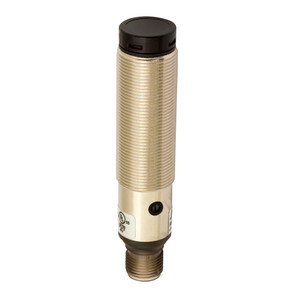

Datasensing FAIM/BN-1E Sensors

The Datasensing FAIM/BN-1E Sensors offer a comprehensive range of M18 sensors designed for optimal performance with a 10...30 Vdc power supply. These sensors feature both axial and radial optics with a flat surface, making them ideal for detecting transparent objects using retro-reflective models with red emission. With an IP67 protection degree, they are built to withstand harsh environments, available in both metallic and plastic housings. Each model includes sensitivity adjustment via a trimmer, ensuring precise detection capabilities. The sensors provide total protection against any type of electric damages and are CE and cULus listed for quality assurance. Key specifications include a nominal sensing distance of 5m, a thermal drift of Sr at ?10% Sr, and a repeat accuracy of 5%. The sensors operate on a retroreflective function principle, with an optic position set axially. They feature an NPN NO+NC output type and function, with a switching frequency of 250Hz and a response time of 2ms. Operating voltage ranges from 10 to 30VDC, with a no-load supply current of ? 30mA and a load current of ?100mA. The sensors have a leakage current of ?10?A and an output voltage drop of ?2V at Iload=100mA. They are equipped with LED indicators for output status and offer short-circuit and reverse polarity protection. The sensors are designed to resist interference from external light sources up to 5000lux (incandescent lamp) and 10000lux (sunlight). They are constructed with a nickel-plated brass housing and a PC plug, weighing 100g, and have dimensions of M18 x 1 /L =81,6mm. The operating temperature range is -25°C to +70°C, ensuring functionality in various conditions. The sensors come with supplied accessories, including M18 x 1 nuts and a screwdriver, and meet EMC compatibility standards EN 60947-5-2, withstanding shocks and vibrations as per IEC standards.
