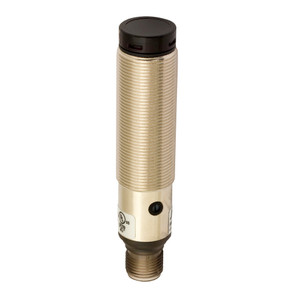

Datasensing FAIM/BN-2E Sensors
Datasensing
$96.24
The Datasensing FAIM/BN-2E Sensors are advanced photoelectric sensors designed for precise and reliable detection. Featuring a 90° retroreflective function, these sensors are capable of detecting objects up to 4 meters away with adjustable sensitivity. They operate on a 10...30 Vdc power supply and are equipped with NPN NO+NC output types, ensuring versatile application. The sensors boast a robust IP67 protection degree, making them suitable for harsh environments. Constructed with a durable plastic housing and M12 connection, they are resistant to electric damages and offer total protection against short circuits, overvoltage, and reverse polarity. The sensors are equipped with LED indicators for easy status monitoring and have a fast response time of 2ms. With approvals from CE and cULus, these sensors meet high safety and quality standards. Ideal for applications requiring high repeat accuracy and minimal thermal drift, the FAIM/BN-2E Sensors are a reliable choice for industrial automation needs.
- Nominal sensing distance:
- 4m
- Thermal drift of Sr:
- ?10% Sr
- Repeat Accuracy:
- 5%
- Sensitivity adjustment:
- Trimmer
- Function Principle:
- Retroreflective
- Notes:
- On RL110 reflector
- Optic position:
- Radial 90°
- Output type:
- NPN NO+NC
- Output Function:
- NO+NC
- Switching frequency:
- 250Hz
- Response time:
- 2ms
- Operating Voltage:
- 10 30VDC
- No-Load supply current:
- ? 30mA
- Load current:
- ?100mA
- Leakage current:
- ?10?A
- Output voltage drop:
- ?2V@Iload=100mA
- Max ripple content:
- ?10%
- LED indicators:
- Yellow (Lon) or output status Lo/Do
- Time delay before availability:
- ?200ms
- Short-circuit protection:
- Short circuit (autoreset), Overvoltage
- Reverse Polarity Protection:
- Polarity inversal, Inpulsive voltage
- Emission:
- LED Infrared (880nm)
- Interference to external light:
- 5000lux (incandescent lamp), 10000lux (sunlight)
- Weight:
- 30g
- Housing Material:
- PBT / PC plug
- Connections:
- M12 plug
- Active Head Material:
- PC
- Tightening torque:
- 1Nm
- Operating temperature:
- - 25°C + 70° C (Without freeze)
- Diameter/Dimension:
- M18
- Approvals:
- CE cULus
- EMC compatibility:
- EN 60947-5-2
- Shocks and vibrations:
- Vibration IEC 60068-2-6 / Shock IEC 60068-2-27
- Degree of protection:
- IP67
- Supplied Accessories:
- nuts M18 x 1, screwdriver
- Operating Temperature:
- - 25°C + 70°C (Without freeze)
- Mechanical Protection:
- IP67
