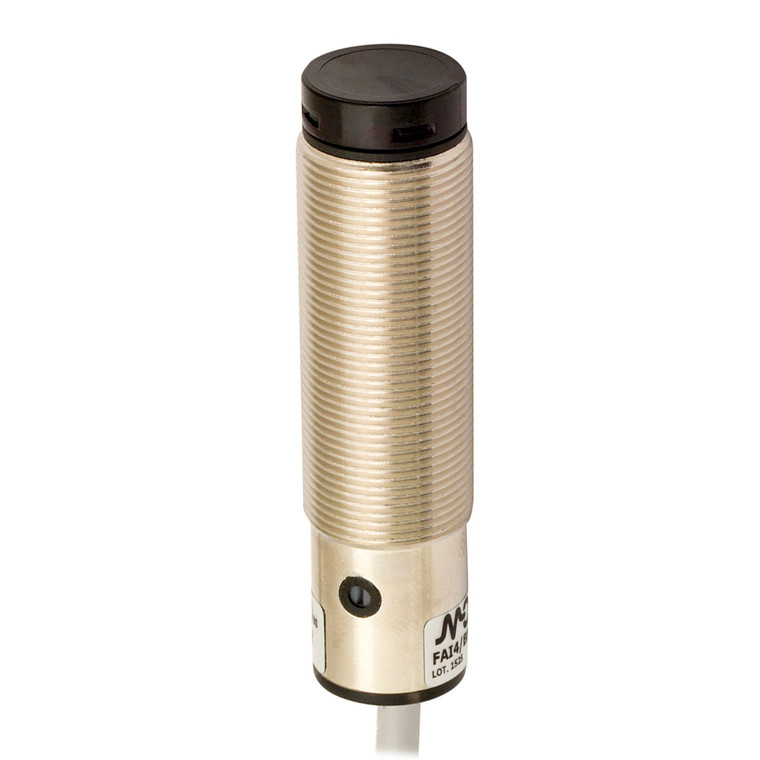

Datasensing FAIM/BN-3A Sensors
Datasensing
$105.01
The Datasensing FAIM/BN-3A Sensors are advanced photoelectric sensors designed for precision and reliability. Featuring a 90° retroreflective function, these sensors are capable of detecting transparent objects with a nominal sensing distance of 4 meters. The robust design includes a metal housing with IP67 protection, ensuring durability in various environments. The sensors operate on a 10...30 VDC power supply and offer both axial and radial optic positions with a flat surface for versatile installation options.
Equipped with NPN NO+NC output types, the FAIM/BN-3A Sensors provide flexibility in output functions, with a switching frequency of 250Hz and a rapid response time of 2ms. The sensitivity can be finely adjusted using a trimmer, allowing for precise detection tailored to specific applications. The sensors are protected against short circuits, overvoltage, and reverse polarity, ensuring reliable performance even in challenging conditions.
The sensors feature LED indicators for easy status monitoring and are designed to withstand external light interference up to 5000lux from incandescent lamps and 10000lux from sunlight. With a compact M18 x 1/L=78.5mm dimension and a weight of 130g, these sensors are easy to install and integrate into existing systems. The package includes M18 x 1 nuts and a screwdriver for convenient setup. Approved by CE and cULus, the Datasensing FAIM/BN-3A Sensors are a dependable choice for industrial applications requiring high accuracy and resilience.
- Nominal sensing distance:
- 4m
- Thermal drift of Sr:
- ?10% Sr
- Repeat Accuracy:
- 5%
- Sensitivity adjustment:
- Trimmer
- Function Principle:
- Retroreflective
- Notes:
- On RL110 reflector
- Optic position:
- Radial 90°
- Output type:
- NPN NO+NC
- Output Function:
- NO+NC
- Switching frequency:
- 250Hz
- Response time:
- 2ms
- Operating Voltage:
- 10 30VDC
- No-Load supply current:
- ? 30mA
- Load current:
- ?100mA
- Leakage current:
- ?10?A
- Output voltage drop:
- ?2V@Iload=100mA
- Max ripple content:
- ?10%
- LED indicators:
- Yellow (Lon) or output status Lo/Do
- Time delay before availability:
- ?200ms
- Short-circuit protection:
- Short circuit (autoreset), Overvoltage
- Reverse Polarity Protection:
- Polarity inversal, Inpulsive voltage
- Emission:
- LED Infrared (880nm)
- Interference to external light:
- 5000lux (incandescent lamp), 10000lux (sunlight)
- Weight:
- 130g
- Housing Material:
- Nickel plated brass / PC cable exit
- Connections:
- 2m PVC cable
- Active Head Material:
- PC
- Tightening torque:
- 25Nm
- Operating temperature:
- - 25°C + 70° C (Without freeze)
- Diameter/Dimension:
- M18
- Approvals:
- CE cULus
- EMC compatibility:
- EN 60947-5-2
- Shocks and vibrations:
- Vibration IEC 60068-2-6 / Shock IEC 60068-2-27
- Degree of protection:
- IP67
- Supplied Accessories:
- nuts M18 x 1, screwdriver
- Operating Temperature:
- - 25°C + 70°C (Without freeze)
- Mechanical Protection:
- IP67
