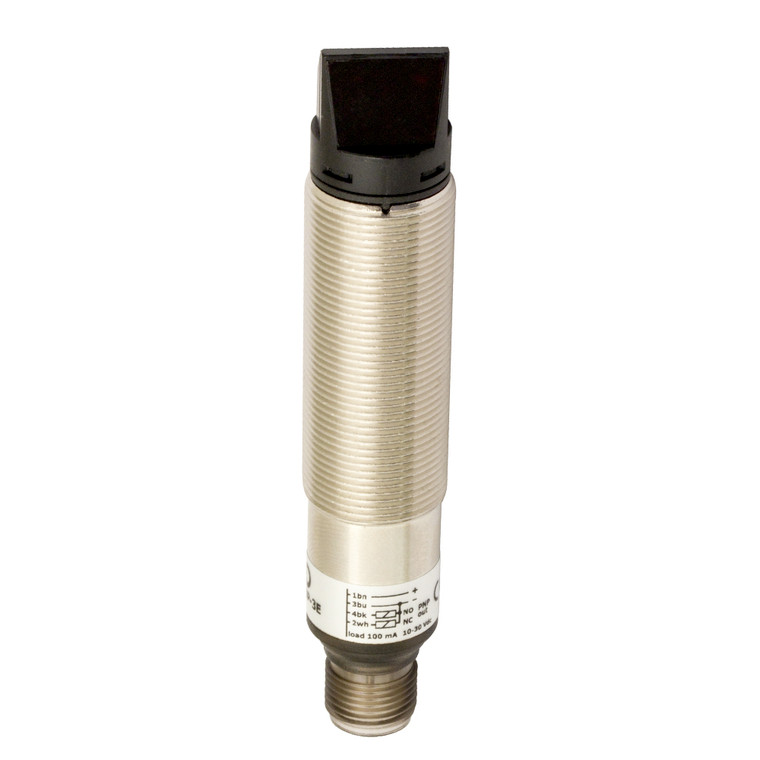

The Datasensing FAIM/BP-3E Sensors are advanced photoelectric sensors designed for precise detection tasks. Featuring a 90° retroreflective function, these sensors offer a nominal sensing distance of 4 meters with adjustable sensitivity via a trimmer. They operate on a 10...30 VDC power supply and are equipped with a PNP NO+NC output type, ensuring versatile application possibilities. The sensors boast a robust nickel-plated brass housing with an IP67 protection rating, making them suitable for harsh environments. With a high switching frequency of 250Hz and a rapid response time of 2ms, they deliver reliable performance in dynamic settings. The sensors are equipped with LED indicators for easy status monitoring and include comprehensive protection features such as short-circuit, overvoltage, and reverse polarity protection. Ideal for detecting transparent objects, these sensors are compatible with RL110 reflectors and are approved by CE and cULus standards, ensuring quality and safety. Supplied with M18 x 1 nuts and a screwdriver, they are ready for immediate installation and use.
- Nominal sensing distance:
- 4m
- Thermal drift of Sr:
- ?10% Sr
- Repeat Accuracy:
- 5%
- Sensitivity adjustment:
- Trimmer
- Function Principle:
- Retroreflective
- Notes:
- On RL110 reflector
- Optic position:
- Radial 90°
- Output type:
- PNP NO+NC
- Output Function:
- NO+NC
- Switching frequency:
- 250Hz
- Response time:
- 2ms
- Operating Voltage:
- 10 30VDC
- No-Load supply current:
- ? 30mA
- Load current:
- ?100mA
- Leakage current:
- ?10?A
- Output voltage drop:
- ?2V@Iload=100mA
- Max ripple content:
- ?10%
- LED indicators:
- Yellow (Lon) or output status Lo/Do
- Time delay before availability:
- ?200ms
- Short-circuit protection:
- Short circuit (autoreset), Overvoltage
- Reverse Polarity Protection:
- Polarity inversal, Inpulsive voltage
- Emission:
- LED Infrared (880nm)
- Interference to external light:
- 5000lux (incandescent lamp), 10000lux (sunlight)
- Weight:
- 100g
- Housing Material:
- Nickel plated brass / PC plug
- Connections:
- M12 plug
- Active Head Material:
- PC
- Tightening torque:
- 25Nm
- Operating temperature:
- - 25°C + 70° C (Without freeze)
- Diameter/Dimension:
- M18
- Approvals:
- CE cULus
- EMC compatibility:
- EN 60947-5-2
- Shocks and vibrations:
- Vibration IEC 60068-2-6 / Shock IEC 60068-2-27
- Degree of protection:
- IP67
- Supplied Accessories:
- nuts M18 x 1, screwdriver
- Operating Temperature:
- - 25°C + 70°C (Without freeze)
- Mechanical Protection:
- IP67
