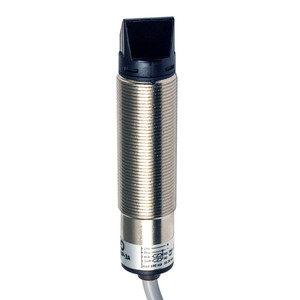

Datasensing FAIZ/BN-1A Sensors
Datasensing
$69.49
The Datasensing FAIZ/BN-1A Sensors are high-performance photoelectric sensors designed for precise detection tasks. Featuring an M18 axial receiver, these sensors offer a nominal sensing distance of 20 meters and operate on a 10...30 VDC power supply. With an NPN NO+NC output type, they provide reliable switching functions and are equipped with a 2-meter PVC cable for easy installation. The robust nickel-plated brass housing ensures durability, while the IP67 protection rating guarantees resistance against dust and water ingress. These sensors are ideal for applications requiring sensitivity to transparent objects, thanks to their retro-reflective models with red emission. The FAIZ/BN-1A Sensors are engineered to withstand harsh environments, with a wide operating temperature range of -25°C to +70°C and comprehensive protection against electrical damages, including short-circuit and reverse polarity protection. Additionally, they are CE and cULus approved, ensuring compliance with international safety standards.
- Nominal sensing distance:
- 20m
- Thermal drift of Sr:
- ?10% Sr
- Repeat Accuracy:
- 5%
- Sensitivity adjustment:
- No
- Function Principle:
- Receiver
- Emitter/Receiver:
- Receiver
- Optic position:
- Axial
- Output type:
- NPN NO+NC
- Output Function:
- NO+NC
- Switching frequency:
- 250Hz
- Response time:
- 2ms
- Operating Voltage:
- 10 30VDC
- No-Load supply current:
- ? 25mA
- Load current:
- ?100mA
- Leakage current:
- ?10?A
- Output voltage drop:
- ?2V@Iload=100mA
- Max ripple content:
- ?10%
- LED indicators:
- Yellow (Lon) or output status Lo/Do
- Time delay before availability:
- ?200ms
- Short-circuit protection:
- Short circuit (autoreset), Overvoltage
- Reverse Polarity Protection:
- Polarity inversal, Inpulsive voltage
- Emission:
- LED Infrared (880nm)
- Interference to external light:
- 5000lux (incandescent lamp), 10000lux (sunlight)
- Weight:
- 130g
- Housing Material:
- Nickel plated brass / PC cable exit
- Connections:
- 2m PVC cable
- Active Head Material:
- PC
- Tightening torque:
- 25Nm
- Operating temperature:
- - 25°C + 70° C (Without freeze)
- Diameter/Dimension:
- M18
- Approvals:
- CE cULus
- EMC compatibility:
- EN 60947-5-2
- Shocks and vibrations:
- Vibration IEC 60068-2-6 / Shock IEC 60068-2-27
- Degree of protection:
- IP67
- Supplied Accessories:
- nuts M18 x 1
- Operating Temperature:
- - 25°C + 70°C (Without freeze)
- Mechanical Protection:
- IP67
- 2D Files:
- View
- 3D Files:
- View
- CAD Files:
- View
- EU Declarations:
- View
- Catalog:
- View
- User Manuals:
- View
