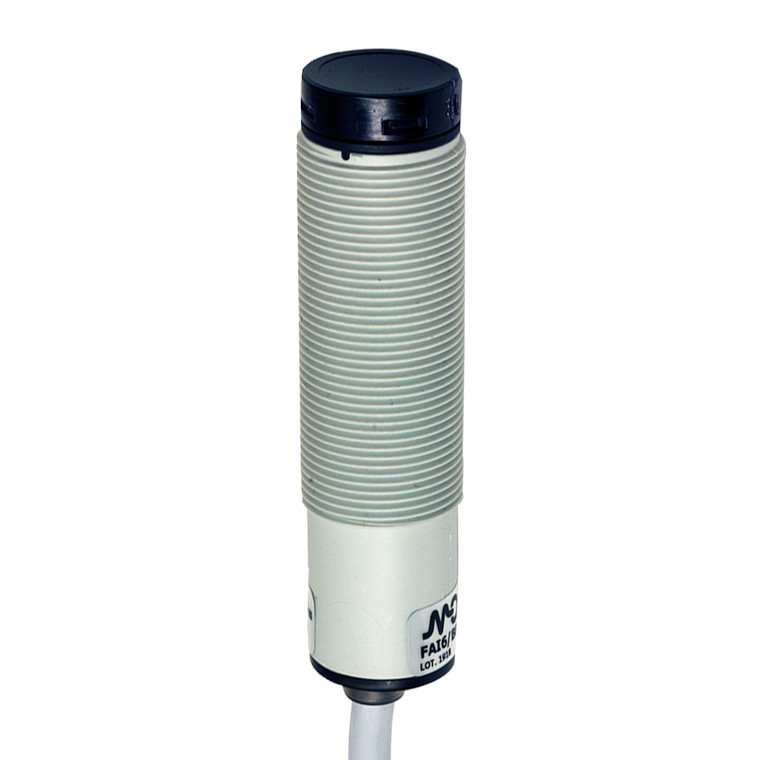

Datasensing FAIZ/BP-0A Sensors
Datasensing
$63.28
The Datasensing FAIZ/BP-0A Sensors are high-performance photoelectric sensors designed for precise detection tasks. Featuring an M18 axial receiver, these sensors offer a nominal sensing distance of 20 meters and operate on a 10...30 VDC power supply. With a robust plastic housing and a 2-meter axial cable, they ensure durability and flexibility in various industrial environments. The sensors are equipped with PNP NO+NC output functions, providing reliable switching capabilities with a frequency of 250Hz and a response time of just 2ms.
Engineered for resilience, the FAIZ/BP-0A sensors boast IP67 protection, safeguarding against dust and water ingress, while their metallic or plastic housing options cater to diverse application needs. The sensors are designed to withstand thermal drift of ?10% Sr and maintain a repeat accuracy of 5%, ensuring consistent performance. They are equipped with LED indicators for easy status monitoring and feature comprehensive protection against short circuits, overvoltage, and reverse polarity.
Ideal for detecting transparent objects, these sensors utilize retro-reflective models with red emission and offer sensitivity adjustment for precise operation. With approvals from CE and cULus, the FAIZ/BP-0A sensors meet stringent safety and quality standards, making them a reliable choice for industrial automation applications.
- Nominal sensing distance:
- 20m
- Thermal drift of Sr:
- ?10% Sr
- Repeat Accuracy:
- 5%
- Sensitivity adjustment:
- No
- Function Principle:
- Receiver
- Emitter/Receiver:
- Receiver
- Optic position:
- Axial
- Output type:
- PNP NO+NC
- Output Function:
- NO+NC
- Switching frequency:
- 250Hz
- Response time:
- 2ms
- Operating Voltage:
- 10 30VDC
- No-Load supply current:
- ? 25mA
- Load current:
- ?100mA
- Leakage current:
- ?10?A
- Output voltage drop:
- ?2V@Iload=100mA
- Max ripple content:
- ?10%
- LED indicators:
- Yellow (Lon) or output status Lo/Do
- Time delay before availability:
- ?200ms
- Short-circuit protection:
- Short circuit (autoreset), Overvoltage
- Reverse Polarity Protection:
- Polarity inversal, Inpulsive voltage
- Emission:
- LED Infrared (880nm)
- Interference to external light:
- 5000lux (incandescent lamp), 10000lux (sunlight)
- Weight:
- 50g
- Housing Material:
- PBT / PC cable exit
- Connections:
- 2m PVC cable
- Active Head Material:
- PC
- Tightening torque:
- 1Nm
- Operating temperature:
- - 25°C + 70° C (Without freeze)
- Diameter/Dimension:
- M18
- Approvals:
- CE cULus
- EMC compatibility:
- EN 60947-5-2
- Shocks and vibrations:
- Vibration IEC 60068-2-6 / Shock IEC 60068-2-27
- Degree of protection:
- IP67
- Supplied Accessories:
- nuts M18 x 1
- Operating Temperature:
- - 25°C + 70°C (Without freeze)
- Mechanical Protection:
- IP67
