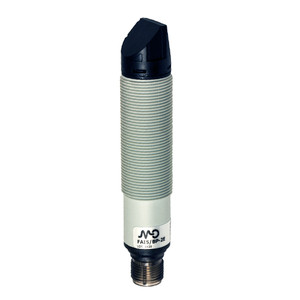

Datasensing FAIZ/BP-2A Sensors
Datasensing
$78.77
The Datasensing FAIZ/BP-2A Sensors are advanced photoelectric sensors designed for precision and reliability. Featuring a 90° radial receiver, these sensors offer a nominal sensing distance of 15 meters, making them ideal for various industrial applications. With a PNP NO+NC output type, they ensure versatile connectivity and functionality. The sensors operate on a 10
30VDC power supply and boast a high switching frequency of 250Hz, with a rapid response time of just 2ms.
Constructed with a durable PBT/PC housing and a 2-meter PVC cable, these sensors are built to withstand harsh environments, offering IP67 protection against dust and water ingress. The sensors are equipped with LED indicators for easy status monitoring and feature comprehensive protection against short circuits, overvoltage, and reverse polarity.
Designed for ease of use, the FAIZ/BP-2A Sensors require no sensitivity adjustment and maintain a repeat accuracy of 5%. They are capable of operating in temperatures ranging from -25°C to +70°C, ensuring reliable performance in diverse conditions. With approvals from CE and cULus, these sensors meet stringent safety and quality standards, making them a dependable choice for your sensing needs.
- Nominal sensing distance:
- 15m
- Thermal drift of Sr:
- ?10% Sr
- Repeat Accuracy:
- 5%
- Sensitivity adjustment:
- No
- Function Principle:
- Receiver
- Emitter/Receiver:
- Receiver
- Optic position:
- Radial 90°
- Output type:
- PNP NO+NC
- Output Function:
- NO+NC
- Switching frequency:
- 250Hz
- Response time:
- 2ms
- Operating Voltage:
- 10 30VDC
- No-Load supply current:
- ? 25mA
- Load current:
- ?100mA
- Leakage current:
- ?10?A
- Output voltage drop:
- ?2V@Iload=100mA
- Max ripple content:
- ?10%
- LED indicators:
- Yellow (Lon) or output status Lo/Do
- Time delay before availability:
- ?200ms
- Short-circuit protection:
- Short circuit (autoreset), Overvoltage
- Reverse Polarity Protection:
- Polarity inversal, Inpulsive voltage
- Emission:
- LED Infrared (880nm)
- Interference to external light:
- 5000lux (incandescent lamp), 10000lux (sunlight)
- Weight:
- 50g
- Housing Material:
- PBT/ PC cable exit
- Connections:
- 2m PVC cable
- Active Head Material:
- PC
- Tightening torque:
- 1Nm
- Operating temperature:
- - 25°C + 70° C (Without freeze)
- Diameter/Dimension:
- M18
- Approvals:
- CE cULus
- EMC compatibility:
- EN 60947-5-2
- Shocks and vibrations:
- Vibration IEC 60068-2-6 / Shock IEC 60068-2-27
- Degree of protection:
- IP67
- Supplied Accessories:
- nuts M18 x 1
- Operating Temperature:
- - 25°C + 70°C (Without freeze)
- Mechanical Protection:
- IP67
- 2D Files:
- View
- 3D Files:
- View
- CAD Files:
- View
- EU Declarations:
- View
- Catalog:
- View
- User Manuals:
- View
