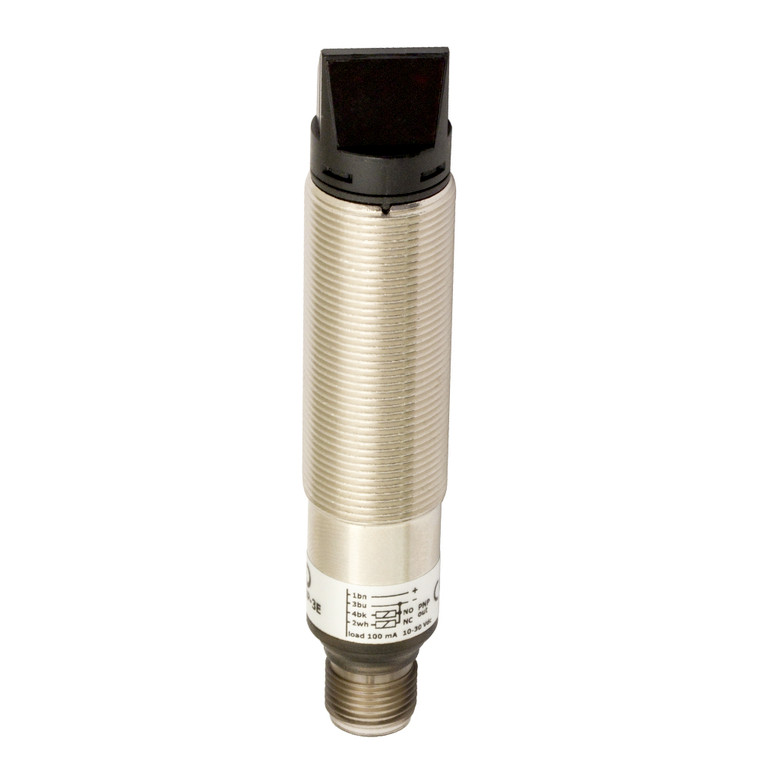

Datasensing FAIZ/BP-3E Sensors
Datasensing
$79.81
The Datasensing FAIZ/BP-3E Sensors are high-performance photoelectric sensors designed for precise detection tasks. Featuring a 90° radial receiver, these sensors offer a nominal sensing distance of 15 meters and operate on a 10...30 VDC power supply. With a robust nickel-plated brass housing and IP67 protection, they are built to withstand harsh environments. The sensors are equipped with PNP NO+NC output types, ensuring versatile application compatibility. They boast a fast switching frequency of 250Hz and a quick response time of 2ms, making them ideal for dynamic industrial settings. The sensors are protected against short circuits, overvoltage, and reverse polarity, ensuring reliable operation. Additionally, they feature LED infrared emission for effective detection and are resistant to external light interference. With CE and cULus approvals, these sensors meet high safety and quality standards.
- Nominal sensing distance:
- 15m
- Thermal drift of Sr:
- ?10% Sr
- Repeat Accuracy:
- 5%
- Sensitivity adjustment:
- No
- Function Principle:
- Receiver
- Emitter/Receiver:
- Receiver
- Optic position:
- Radial 90°
- Output type:
- PNP NO+NC
- Output Function:
- NO+NC
- Switching frequency:
- 250Hz
- Response time:
- 2ms
- Operating Voltage:
- 10 30VDC
- No-Load supply current:
- ? 25mA
- Load current:
- ?100mA
- Leakage current:
- ?10?A
- Output voltage drop:
- ?2V@Iload=100mA
- Max ripple content:
- ?10%
- LED indicators:
- Yellow (Lon) or output status Lo/Do
- Time delay before availability:
- ?200ms
- Short-circuit protection:
- Short circuit (autoreset), Overvoltage
- Reverse Polarity Protection:
- Polarity inversal, Inpulsive voltage
- Emission:
- LED Infrared (880nm)
- Interference to external light:
- 5000lux (incandescent lamp), 10000lux (sunlight)
- Weight:
- 100g
- Housing Material:
- Nickel plated brass / PC plug
- Connections:
- M12 plug
- Active Head Material:
- PC
- Tightening torque:
- 25Nm
- Operating temperature:
- - 25°C + 70° C (Without freeze)
- Diameter/Dimension:
- M18
- Approvals:
- CE cULus
- EMC compatibility:
- EN 60947-5-2
- Shocks and vibrations:
- Vibration IEC 60068-2-6 / Shock IEC 60068-2-27
- Degree of protection:
- IP67
- Supplied Accessories:
- nuts M18 x 1
- Operating Temperature:
- - 25°C + 70°C (Without freeze)
- Mechanical Protection:
- IP67
