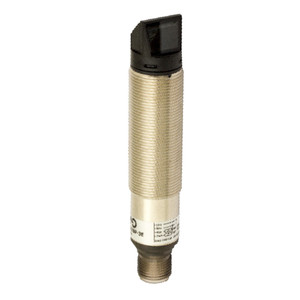

Datasensing FALD/BN-3E Sensors
Datasensing
$113.21
The Datasensing FALD/BN-3E Sensors are advanced photoelectric sensors designed for precision and reliability. Featuring a 90° radial optic position, these sensors utilize a visible red laser emission to achieve a nominal sensing distance of up to 50 meters. With a robust NPN NO+NC output type, they offer both normally open and normally closed functions, ensuring versatile application compatibility.
Constructed with a durable nickel-plated brass housing and a glass/PC active head, these sensors are built to withstand harsh environments, boasting an IP67 protection degree. The M18 sensors operate efficiently within a voltage range of 10 to 30 VDC, with a low no-load supply current of ? 25mA and a load current capacity of ?100mA. They are equipped with short-circuit and reverse polarity protection, ensuring total protection against electrical damages.
The FALD/BN-3E Sensors feature a sensitivity adjustment trimmer, allowing for precise calibration to suit specific needs. They are designed to handle high switching frequencies of up to 1kHz, with a rapid response time of 500µs. The sensors are also equipped with LED indicators for easy status monitoring.
Approved by CE and cULus, these sensors meet stringent safety and performance standards. They are resistant to external light interference, withstanding up to 5000 lux from incandescent lamps and 10000 lux from sunlight. The sensors come with supplied accessories, including M18 x 1 nuts and a screwdriver, for easy installation and maintenance. Ideal for a wide range of industrial applications, the Datasensing FALD/BN-3E Sensors deliver reliable performance in temperatures ranging from -15°C to +55°C.
- Nominal sensing distance:
- 50m
- Thermal drift of Sr:
- ?10% Sr
- Repeat Accuracy:
- 5%
- Sensitivity adjustment:
- Trimmer
- Function Principle:
- Receiver
- Emitter/Receiver:
- Receiver
- Optic position:
- Radial 90°
- Output type:
- NPN NO+NC
- Output Function:
- NO+NC
- Switching frequency:
- 1Khz
- Response time:
- 500µs
- Operating Voltage:
- 10 30VDC
- No-Load supply current:
- ? 25mA
- Load current:
- ?100mA
- Leakage current:
- ?10?A
- Output voltage drop:
- ?2V@Iload=100mA
- Max ripple content:
- ?10%
- LED indicators:
- Yellow (Lon) or output status Lo/Do
- Time delay before availability:
- ?200ms
- Short-circuit protection:
- Short circuit (autoreset), Overvoltage
- Reverse Polarity Protection:
- Polarity inversal, Inpulsive voltage
- Interference to external light:
- 5000lux (incandescent lamp), 10000lux (sunlight)
- Weight:
- 100g
- Housing Material:
- Nickel plated brass / PC plug
- Connections:
- M12 plug
- Active Head Material:
- Glass / PC
- Tightening torque:
- 25Nm
- Operating temperature:
- - 15°C + 55° C (Without freeze)
- Diameter/Dimension:
- M18
- Approvals:
- CE cULus
- EMC compatibility:
- EN 60947-5-2
- Shocks and vibrations:
- Vibration IEC 60068-2-6 / Shock IEC 60068-2-27
- Degree of protection:
- IP67
- Supplied Accessories:
- nuts M18 x 1, screwdriver
- Operating Temperature:
- - 15°C...+ 55°C (Without freeze)
- Mechanical Protection:
- IP67
