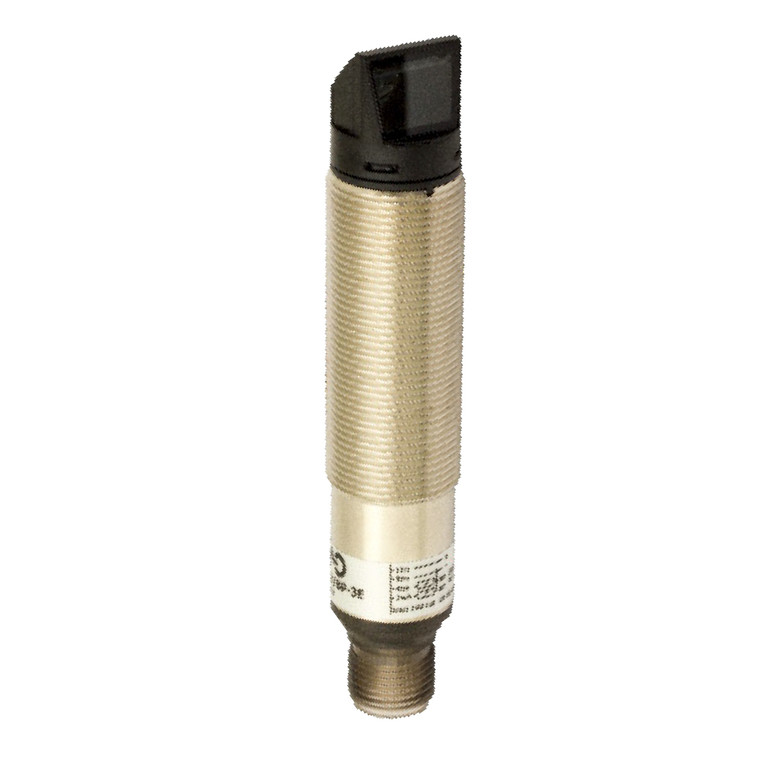

Datasensing FALD/BP-3E Sensors
Datasensing
$113.21
The Datasensing FALD/BP-3E Sensors are advanced photoelectric sensors designed for precision and reliability. Featuring a 90° radial optic position, these sensors utilize a visible red laser emission to achieve a nominal sensing distance of up to 50 meters. With a robust IP67 protection degree, they are built to withstand harsh environments, offering total protection against electric damages. The sensors are housed in durable nickel-plated brass with a glass/PC active head, ensuring longevity and resilience.
Equipped with a PNP NO+NC output type, the FALD/BP-3E Sensors provide versatile connectivity options through an M12 plug. They operate efficiently within a voltage range of 10 to 30 VDC, with a low no-load supply current of ? 25mA and a load current capacity of ?100mA. The sensors feature a sensitivity adjustment trimmer, allowing for precise calibration to suit various applications.
Designed to handle thermal drift of ?10% Sr and repeat accuracy of 5%, these sensors maintain consistent performance even in fluctuating temperatures ranging from -15°C to +55°C. The FALD/BP-3E Sensors are equipped with LED indicators for easy status monitoring and offer short-circuit, overvoltage, and reverse polarity protection for enhanced safety.
Approved by CE and cULus, and compliant with EMC compatibility standards EN 60947-5-2, these sensors are ideal for industrial applications requiring high reliability and accuracy. Supplied with M18 x 1 nuts and a screwdriver, they are ready for immediate installation and use.
- Nominal sensing distance:
- 50m
- Thermal drift of Sr:
- ?10% Sr
- Repeat Accuracy:
- 5%
- Sensitivity adjustment:
- Trimmer
- Function Principle:
- Receiver
- Emitter/Receiver:
- Receiver
- Optic position:
- Radial 90°
- Output type:
- PNP NO+NC
- Output Function:
- NO+NC
- Switching frequency:
- 1Khz
- Response time:
- 500µs
- Operating Voltage:
- 10 30VDC
- No-Load supply current:
- ? 25mA
- Load current:
- ?100mA
- Leakage current:
- ?10?A
- Output voltage drop:
- ?2V@Iload=100mA
- Max ripple content:
- ?10%
- LED indicators:
- Yellow (Lon) or output status Lo/Do
- Time delay before availability:
- ?200ms
- Short-circuit protection:
- Short circuit (autoreset), Overvoltage
- Reverse Polarity Protection:
- Polarity inversal, Inpulsive voltage
- Interference to external light:
- 5000lux (incandescent lamp), 10000lux (sunlight)
- Weight:
- 100g
- Housing Material:
- Nickel plated brass / PC plug
- Connections:
- M12 plug
- Active Head Material:
- Glass / PC
- Tightening torque:
- 25Nm
- Operating temperature:
- - 15°C + 55° C (Without freeze)
- Diameter/Dimension:
- M18
- Approvals:
- CE cULus
- EMC compatibility:
- EN 60947-5-2
- Shocks and vibrations:
- Vibration IEC 60068-2-6 / Shock IEC 60068-2-27
- Degree of protection:
- IP67
- Supplied Accessories:
- nuts M18 x 1, screwdriver
- Operating Temperature:
- - 15°C...+ 55°C (Without freeze)
- Mechanical Protection:
- IP67
