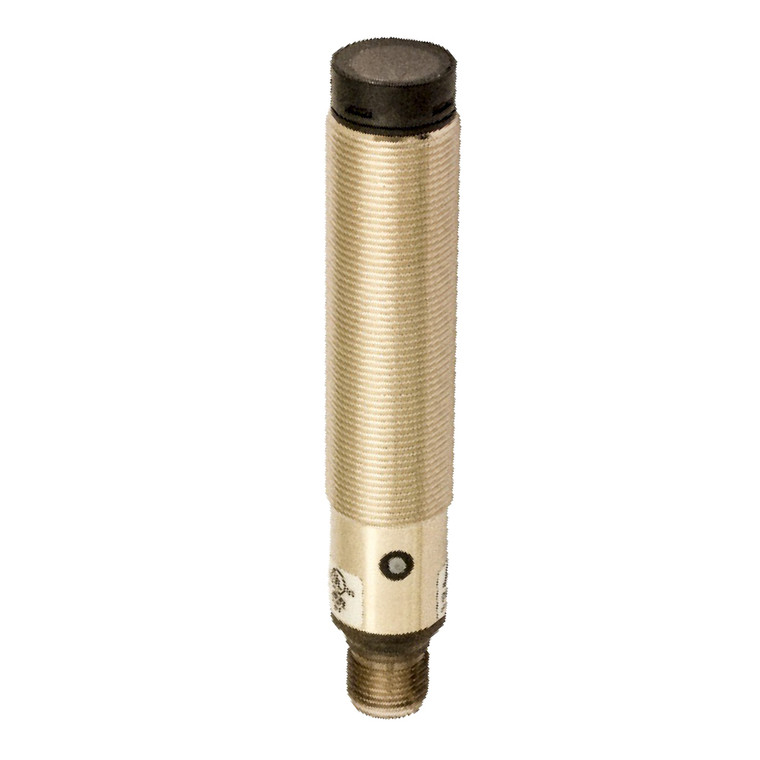

Datasensing FALN/BN-1E Sensors
Datasensing
$271.52
The Datasensing FALN/BN-1E Sensors are advanced photoelectric sensors designed for precision and reliability. Featuring an axial laser with retroreflective polarized technology, these sensors offer a nominal sensing distance of 20 meters, adjustable to suit various applications. With a robust NPN NO+NC output type, they ensure seamless integration into your systems. The sensors operate on a 10...30 VDC power supply and are equipped with a teach-in sensitivity adjustment for easy setup.
Built to withstand challenging environments, the FALN/BN-1E Sensors boast an IP67 protection degree, safeguarding against dust and water ingress. The housing is constructed from durable nickel-plated brass, complemented by a glass/PC active head material, ensuring longevity and resilience. The sensors are designed to handle thermal drift of ?10% Sr and offer a repeat accuracy of 5%, making them ideal for high-precision tasks.
With a switching frequency of 800Hz and a rapid response time of 625µs, these sensors are perfect for fast-paced operations. They feature comprehensive protection mechanisms, including short-circuit, overvoltage, and reverse polarity protection, ensuring reliable performance under various conditions. The sensors are CE and cULus listed, meeting international safety and quality standards.
Additional features include LED indicators for power supply and operation status, a compact M18 x 1 design with a length of 80 mm, and a lightweight build of 70g. The sensors come with supplied accessories such as M18 x 1 nuts and a screwdriver for easy installation. Operating efficiently in temperatures ranging from -15°C to +55°C, the Datasensing FALN/BN-1E Sensors are the perfect choice for demanding industrial applications.
- Nominal sensing distance:
- 20m
- Thermal drift of Sr:
- ?10% Sr
- Repeat Accuracy:
- 5%
- Sensitivity adjustment:
- Teach-in
- Function Principle:
- Polarized
- Notes:
- On RL110 reflector
- Optic position:
- Axial
- Output type:
- NPN NO+NC
- Output Function:
- NO+NC
- Switching frequency:
- 800Hz
- Response time:
- 625µs
- Operating Voltage:
- 10 30VDC
- No-Load supply current:
- ? 30mA
- Load current:
- ?100mA
- Leakage current:
- ?10?A
- Output voltage drop:
- ?2V@Iload=100mA
- Max ripple content:
- ?10%
- LED indicators:
- Green power supply/yellow (LightON EG?2)/yellow flashing (LightON 1
- Time delay before availability:
- ?200ms
- Short-circuit protection:
- Short circuit (autoreset), Overvoltage
- Reverse Polarity Protection:
- Polarity inversal, Inpulsive voltage
- Emission:
- LASER Red (650nm) class1
- Interference to external light:
- 3000lux (incandescent lamp), 10000lux (sunlight)
- Weight:
- 70g
- Housing Material:
- Nickel plated brass / PC plug
- Connections:
- M12 plug
- Active Head Material:
- Glass / PC
- Tightening torque:
- 25Nm
- Operating temperature:
- - 15°C + 55° C (Without freeze)
- Diameter/Dimension:
- M18
- Approvals:
- CE cULus
- EMC compatibility:
- EN 60947-5-2
- Shocks and vibrations:
- Vibration IEC 60068-2-6 / Shock IEC 60068-2-27
- Degree of protection:
- IP67
- Supplied Accessories:
- nuts M18 x 1, screwdriver
- Operating Temperature:
- - 15°C...+ 55°C (Without freeze)
- Mechanical Protection:
- IP67
