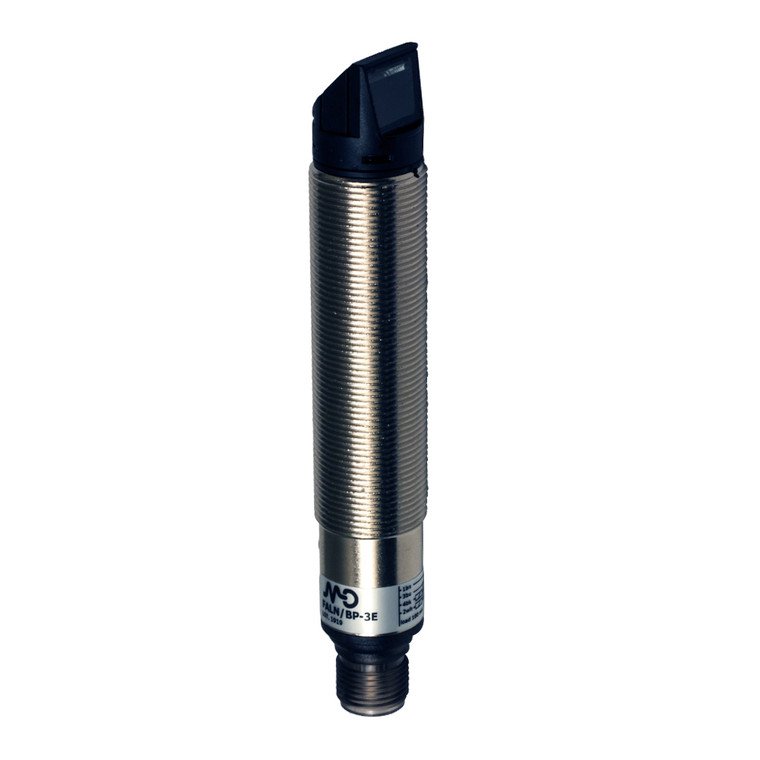

Datasensing FALN/BN-3E Sensors
Datasensing
$292.74
The Datasensing FALN/BN-3E Sensors are advanced photoelectric sensors designed for precision and reliability. Featuring a 90° laser retroreflective polarized function, these sensors offer a nominal sensing distance of 20 meters with adjustable sensitivity through a convenient teach-in method. The robust design includes a radial optic position and a durable nickel-plated brass housing, ensuring long-lasting performance even in challenging environments. With an IP67 protection rating, these sensors are resistant to dust and water ingress, making them suitable for a wide range of industrial applications.
Equipped with NPN NO+NC output types, the FALN/BN-3E Sensors provide versatile connectivity options via an M12 plug. They operate efficiently within a voltage range of 10 to 30 VDC, with a low no-load supply current of ? 30mA. The sensors boast a high switching frequency of 800Hz and a rapid response time of 625µs, ensuring quick and accurate detection.
Additional features include short-circuit and overvoltage protection, reverse polarity protection, and LED indicators for easy status monitoring. The sensors are designed to withstand thermal drift of ?10% Sr and maintain repeat accuracy of 5%. With approvals from CE and cULus, these sensors meet international standards for safety and performance.
Ideal for applications requiring precise object detection and reliable operation, the Datasensing FALN/BN-3E Sensors are a top choice for professionals seeking high-quality sensing solutions.
- Nominal sensing distance:
- 20m
- Thermal drift of Sr:
- ?10% Sr
- Repeat Accuracy:
- 5%
- Sensitivity adjustment:
- Teach-in
- Function Principle:
- Polarized
- Notes:
- On RL110 reflector
- Optic position:
- Radial 90°
- Output type:
- NPN NO+NC
- Output Function:
- NO+NC
- Switching frequency:
- 800Hz
- Response time:
- 625µs
- Operating Voltage:
- 10 30VDC
- No-Load supply current:
- ? 30mA
- Load current:
- ?100mA
- Leakage current:
- ?10?A
- Output voltage drop:
- ?2V@Iload=100mA
- Max ripple content:
- ?10%
- LED indicators:
- Green power supply/yellow (LightON EG?2)/yellow flashing (LightON 1
- Time delay before availability:
- ?200ms
- Short-circuit protection:
- Short circuit (autoreset), Overvoltage
- Reverse Polarity Protection:
- Polarity inversal, Inpulsive voltage
- Emission:
- LASER Red (650nm) class1
- Interference to external light:
- 3000lux (incandescent lamp), 10000lux (sunlight)
- Weight:
- 70g
- Housing Material:
- Nickel plated brass / PC plug
- Connections:
- M12 plug
- Active Head Material:
- Glass / PC
- Tightening torque:
- 25Nm
- Operating temperature:
- - 15°C + 55° C (Without freeze)
- Diameter/Dimension:
- M18
- Approvals:
- CE cULus
- EMC compatibility:
- EN 60947-5-2
- Shocks and vibrations:
- Vibration IEC 60068-2-6 / Shock IEC 60068-2-27
- Degree of protection:
- IP67
- Supplied Accessories:
- nuts M18 x 1, screwdriver
- Operating Temperature:
- - 15°C...+ 55°C (Without freeze)
- Mechanical Protection:
- IP67
