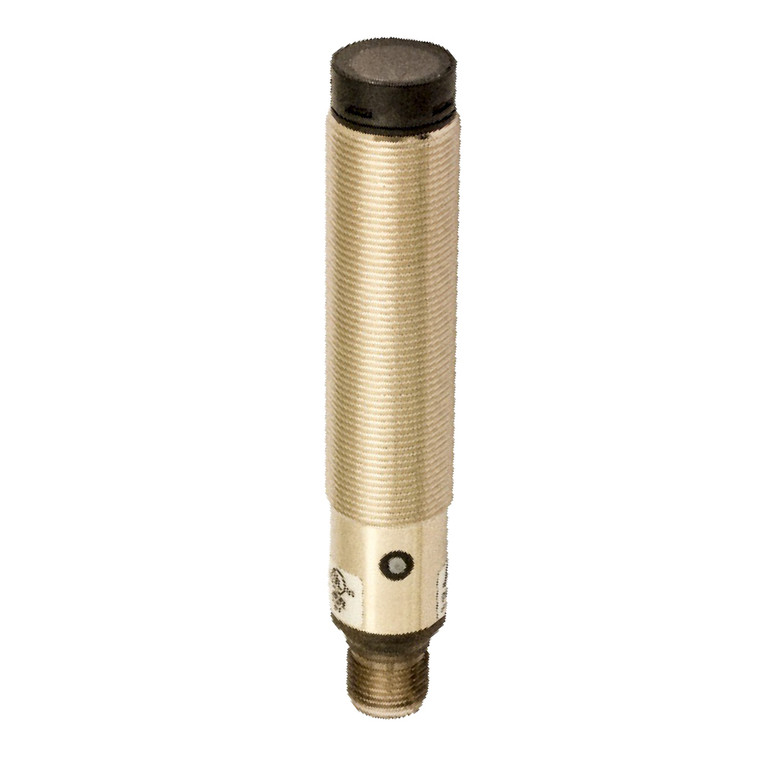

Datasensing FALN/BP-1E Sensors
Datasensing
$271.52
The Datasensing FALN/BP-1E Sensors offer a comprehensive solution for precise detection needs, featuring a complete range of M18 sensors powered by a 10...30 Vdc supply. Designed with both axial and radial optics on a flat surface, these sensors utilize a visible red laser emission for accurate performance. With an IP67 protection rating, they are built to withstand harsh environments, available in both metallic and plastic housings. The sensors include sensitivity adjustment through a convenient teach-in function, ensuring adaptability to various applications. They provide total protection against electrical damages and are CE and cULus approved for reliable use.
Key specifications include a nominal sensing distance of 20m, with a thermal drift of Sr at ?10% Sr and a repeat accuracy of 5%. The sensors operate on a polarized function principle, with an optic position set axially. They feature a PNP NO+NC output type, with a switching frequency of 800Hz and a response time of 625µs. The operating voltage ranges from 10 to 30VDC, with a no-load supply current of ? 30mA and a load current of ?100mA. The sensors are equipped with LED indicators for power supply and operational status, and they offer short-circuit and reverse polarity protection. With a robust nickel-plated brass housing and glass/PC active head material, these sensors are designed for durability and reliability in demanding conditions.
- Nominal sensing distance:
- 20m
- Thermal drift of Sr:
- ?10% Sr
- Repeat Accuracy:
- 5%
- Sensitivity adjustment:
- Teach-in
- Function Principle:
- Polarized
- Notes:
- On RL110 reflector
- Optic position:
- Axial
- Output type:
- PNP NO+NC
- Output Function:
- NO+NC
- Switching frequency:
- 800Hz
- Response time:
- 625µs
- Operating Voltage:
- 10 30VDC
- No-Load supply current:
- ? 30mA
- Load current:
- ?100mA
- Leakage current:
- ?10?A
- Output voltage drop:
- ?2V@Iload=100mA
- Max ripple content:
- ?10%
- LED indicators:
- Green power supply/yellow (LightON EG?2)/yellow flashing (LightON 1
- Time delay before availability:
- ?200ms
- Short-circuit protection:
- Short circuit (autoreset), Overvoltage
- Reverse Polarity Protection:
- Polarity inversal, Inpulsive voltage
- Emission:
- LASER Red (650nm) class1
- Interference to external light:
- 3000lux (incandescent lamp), 10000lux (sunlight)
- Weight:
- 70g
- Housing Material:
- Nickel plated brass / PC plug
- Connections:
- M12 plug
- Active Head Material:
- Glass / PC
- Tightening torque:
- 25Nm
- Operating temperature:
- - 15°C + 55° C (Without freeze)
- Diameter/Dimension:
- M18
- Approvals:
- CE cULus
- EMC compatibility:
- EN 60947-5-2
- Shocks and vibrations:
- Vibration IEC 60068-2-6 / Shock IEC 60068-2-27
- Degree of protection:
- IP67
- Supplied Accessories:
- nuts M18 x 1, screwdriver
- Operating Temperature:
- - 15°C...+ 55°C (Without freeze)
- Mechanical Protection:
- IP67
