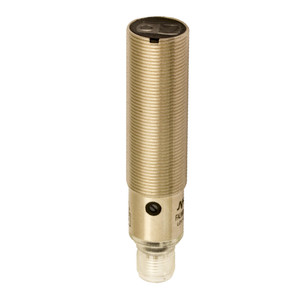

Datasensing FALW/BN-1E77 Sensors
Datasensing
$308.68
The Datasensing FALW/BN-1E77 Sensors are advanced photoelectric sensors designed for precision and reliability. Featuring an M18 axial laser with class 2 background suppression, these sensors offer an adjustable sensing range of 30 to 120 mm, making them ideal for various industrial applications. The NPN NO+NC output type ensures versatile connectivity, while the metal M12 plug provides robust and secure connections. With a nominal sensing distance of 120mm and a repeat accuracy of 10%, these sensors deliver consistent performance. The sensitivity can be easily adjusted using a trimmer, and the device is equipped with short-circuit and overvoltage protection for enhanced durability. The sensor's housing is made from nickel-plated brass with a PA12 plug, ensuring IP67 mechanical protection against dust and water. Operating efficiently within a temperature range of -15°C to +55°C, the FALW/BN-1E77 is suitable for challenging environments. Additional features include a high switching frequency of 1.5kHz, a response time of 333µs, and LED indicators for output status. The sensor is compliant with CE and cULus approvals, ensuring it meets international safety and performance standards. Supplied with M18 x 1 nuts and a screwdriver, this sensor is ready for immediate installation and use.
- Nominal sensing distance:
- 120mm
- Thermal drift of Sr:
- ?10% Sr
- Repeat Accuracy:
- 10%
- Sensitivity adjustment:
- Trimmer
- Minimum sensing distance (blind zone):
- 30mm
- Function Principle:
- Blackground suppression
- Notes:
- white target Kodak 90% 100 x 100mm
- Optic position:
- Axial
- Output type:
- NPN NO+NC
- Output Function:
- NO+NC
- Switching frequency:
- 1,5kHz
- Response time:
- 333µs
- Operating Voltage:
- 10 30VDC
- No-Load supply current:
- ? 30mA
- Load current:
- ?100mA
- Leakage current:
- ?10?A
- Output voltage drop:
- ?2V@Iload=100mA
- Max ripple content:
- ?10%
- LED indicators:
- Yellow (Lon) or output status Lo/Do
- Time delay before availability:
- ?200ms
- Short-circuit protection:
- Short circuit (autoreset), Overvoltage
- Reverse Polarity Protection:
- Polarity inversal, Inpulsive voltage
- Emission:
- LASER Red (650nm) class2
- Interference to external light:
- 3000lux (incandescent lamp), 10000lux (sunlight)
- Housing Material:
- Nickel plated brass / PA12 plug
- Connections:
- M12 plug
- Active Head Material:
- PMMA / ABS
- Tightening torque:
- 25Nm
- Diameter/Dimension:
- M18
- Approvals:
- CE cULus
- EMC compatibility:
- EN 60947-5-2
- Shocks and vibrations:
- Vibration IEC 60068-2-6 / Shock IEC 60068-2-27
- Supplied Accessories:
- nuts M18 x 1, screwdriver
- Dimensions:
- M18 x 1/L=80m
- Operating Temperature:
- - 15°C...+ 55°C (Without freeze)
- Mechanical Protection:
- IP67
- User Manuals:
- View
