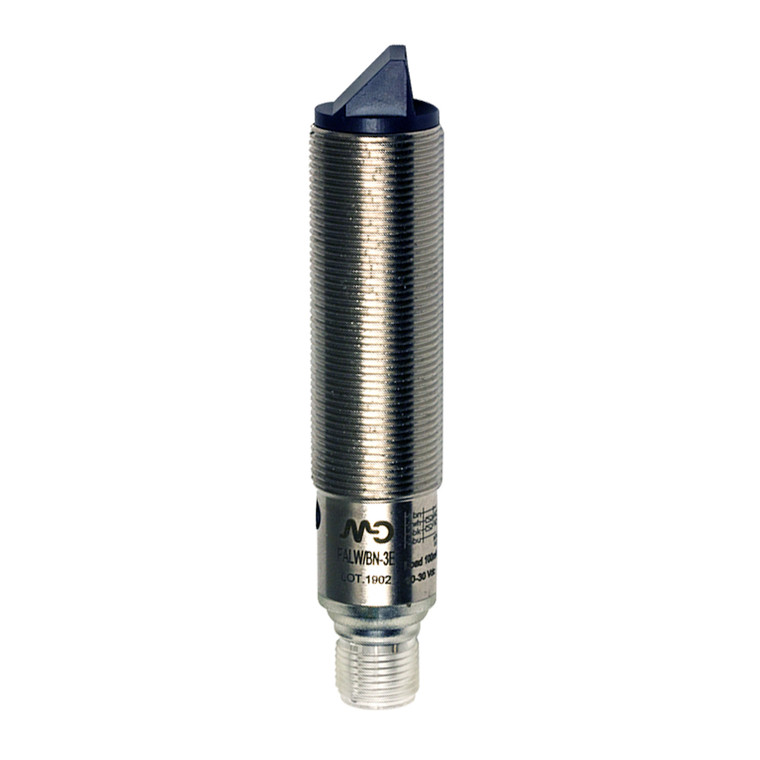

Datasensing FALW/BN-3E77 Sensors
Datasensing
$355.72
The Datasensing FALW/BN-3E77 Sensors are advanced photoelectric sensors designed for precision and reliability. Featuring a radial laser class 2 with background suppression, these sensors offer an adjustable sensing range of 30 to 100 mm, ensuring accurate detection even in challenging environments. The NPN NO+NC output type provides versatile connectivity options, while the robust nickel-plated brass housing ensures durability with an IP67 mechanical protection rating.
With a nominal sensing distance of 100mm and a repeat accuracy of 10%, these sensors are ideal for applications requiring high precision. The sensitivity can be easily adjusted using a trimmer, and the device is equipped with short-circuit and overvoltage protection for enhanced safety. The M12 metal plug connection and included accessories, such as M18 x 1 nuts and a screwdriver, facilitate easy installation.
The FALW/BN-3E77 Sensors are designed to withstand harsh conditions, with an operating temperature range of -15°C to +55°C and resistance to shocks and vibrations as per IEC standards. The laser emission is red (650nm) class 2, and the sensor is capable of handling interference from external light sources up to 3000 lux (incandescent lamp) and 10000 lux (sunlight).
Approved by CE and cULus, and compliant with EMC compatibility standards EN 60947-5-2, these sensors are a reliable choice for industrial applications requiring precise and dependable sensing solutions.
- Nominal sensing distance:
- 100mm
- Thermal drift of Sr:
- ?10% Sr
- Repeat Accuracy:
- 10%
- Sensitivity adjustment:
- Trimmer
- Minimum sensing distance (blind zone):
- 30mm
- Function Principle:
- Blackground suppression
- Notes:
- white target Kodak 90% 100 x 100mm
- Optic position:
- Radial 90°
- Output type:
- NPN NO+NC
- Output Function:
- NO+NC
- Switching frequency:
- 1,5kHz
- Response time:
- 333µs
- Operating Voltage:
- 10 30VDC
- No-Load supply current:
- ? 30mA
- Load current:
- ?100mA
- Leakage current:
- ?10?A
- Output voltage drop:
- ?2V@Iload=100mA
- Max ripple content:
- ?10%
- LED indicators:
- Yellow (Lon) or output status Lo/Do
- Time delay before availability:
- ?200ms
- Short-circuit protection:
- Short circuit (autoreset), Overvoltage
- Reverse Polarity Protection:
- Polarity inversal, Inpulsive voltage
- Emission:
- LASER Red (650nm) class2
- Interference to external light:
- 3000lux (incandescent lamp), 10000lux (sunlight)
- Housing Material:
- Nickel plated brass / PC plug
- Connections:
- M12 plug
- Active Head Material:
- PMMA / ABS
- Tightening torque:
- 25Nm
- Diameter/Dimension:
- M18
- Approvals:
- CE cULus
- EMC compatibility:
- EN 60947-5-2
- Shocks and vibrations:
- Vibration IEC 60068-2-6 / Shock IEC 60068-2-27
- Supplied Accessories:
- nuts M18 x 1, screwdriver
- Dimensions:
- M18 x 1/L=89,4mm
- Operating Temperature:
- - 15°C...+ 55°C (Without freeze)
- Mechanical Protection:
- IP67
