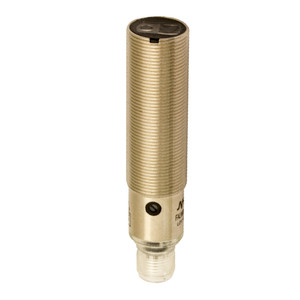

The Datasensing FALW/BP-1E77 Sensors are advanced photoelectric sensors designed for precision and reliability. Featuring an M18 axial laser with class 2 background suppression, these sensors offer an adjustable sensing range of 30 to 120 mm, ensuring accurate detection even in challenging environments. The PNP NO+NC output type provides versatile connectivity options, while the metal M12 plug ensures robust and secure connections. With a nominal sensing distance of 120mm and a repeat accuracy of 10%, these sensors are ideal for applications requiring high precision.
The sensors are equipped with a trimmer for sensitivity adjustment, allowing for fine-tuning to meet specific application needs. They operate efficiently within a voltage range of 10 to 30VDC, with a no-load supply current of ? 30mA and a load current of ?100mA. The short-circuit and overvoltage protection features, along with reverse polarity protection, ensure durability and safety in various industrial settings.
Constructed with nickel-plated brass housing and a glass/ABS active head, the sensors are built to withstand harsh conditions, offering IP67 mechanical protection. They are resistant to shocks and vibrations, compliant with IEC standards, and can operate in temperatures ranging from -15°C to +55°C. The sensors come with supplied accessories, including M18 x 1 nuts and a screwdriver, for easy installation and maintenance. With CE and cULus approvals, these sensors meet high standards of quality and performance, making them a reliable choice for industrial automation and control systems.
- Nominal sensing distance:
- 120mm
- Thermal drift of Sr:
- ?10% Sr
- Repeat Accuracy:
- 10%
- Sensitivity adjustment:
- Trimmer
- Minimum sensing distance (blind zone):
- 30mm
- Function Principle:
- Blackground suppression
- Notes:
- white target Kodak 90% 100 x 100mm
- Optic position:
- Axial
- Output type:
- PNP NO+NC
- Output Function:
- NO+NC
- Switching frequency:
- 1,5kHz
- Response time:
- 333µs
- Operating Voltage:
- 10 30VDC
- No-Load supply current:
- ? 30mA
- Load current:
- ?100mA
- Leakage current:
- ?10?A
- Output voltage drop:
- ?2V@Iload=100mA
- Max ripple content:
- ?10%
- LED indicators:
- Yellow (Lon) or output status Lo/Do
- Time delay before availability:
- ?200ms
- Short-circuit protection:
- Short circuit (autoreset), Overvoltage
- Reverse Polarity Protection:
- Polarity inversal, Inpulsive voltage
- Emission:
- LASER Red (650nm) class1
- Interference to external light:
- 3000lux (incandescent lamp), 10000lux (sunlight)
- Housing Material:
- Nickel plated brass / PC plug
- Connections:
- M12 plug
- Active Head Material:
- Glass / ABS
- Tightening torque:
- 25Nm
- Diameter/Dimension:
- M18
- Approvals:
- CE cULus
- EMC compatibility:
- EN 60947-5-2
- Shocks and vibrations:
- Vibration IEC 60068-2-6 / Shock IEC 60068-2-27
- Supplied Accessories:
- nuts M18 x 1, screwdriver
- Dimensions:
- M18 x 1 /L =80mm
- Operating Temperature:
- - 15°C...+ 55°C (Without freeze)
- Mechanical Protection:
- IP67
