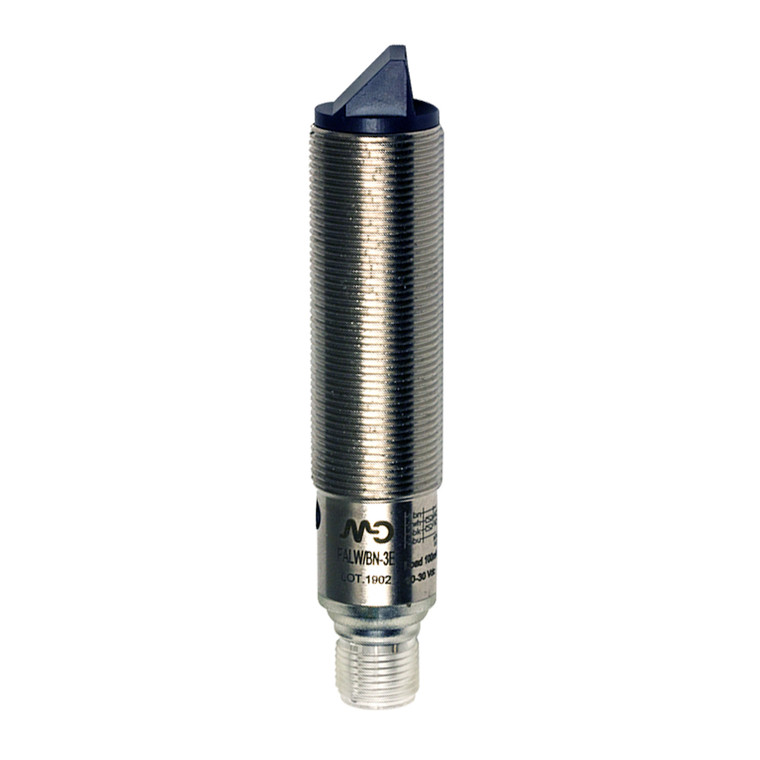

Datasensing FALW/BP-3E Sensors
Datasensing
$332.37
The Datasensing FALW/BP-3E Sensors are advanced photoelectric sensors designed for precision and reliability. Featuring a radial optic with a visible red laser emission, these sensors offer a nominal sensing distance of 130mm with background suppression capabilities. The robust M18 sensors operate on a 10...30 Vdc power supply and are equipped with a PNP NO+NC output type, ensuring versatile application use. With an IP67 protection degree, these sensors are built to withstand harsh environments, offering total protection against electric damages. The metallic or plastic housing options provide flexibility, while the sensitivity adjustment via a trimmer allows for precise calibration. The sensors are CE and cULus listed, ensuring compliance with international standards. Additional features include a short-circuit protection with autoreset, reverse polarity protection, and a high switching frequency of 1.5kHz. The compact design, with dimensions of M18 x 1/L=89.4mm, and a weight of 60g, makes installation straightforward. Supplied with M18 x 1 nuts and a screwdriver, these sensors are ready for immediate deployment in various industrial applications.
- Nominal sensing distance:
- 130mm
- Thermal drift of Sr:
- ?10% Sr
- Repeat Accuracy:
- 10%
- Sensitivity adjustment:
- Trimmer
- Minimum sensing distance (blind zone):
- 30mm
- Function Principle:
- Blackground suppression
- Notes:
- white target Kodak 90% 100 x 100mm
- Optic position:
- Radial 90°
- Output type:
- PNP NO+NC
- Output Function:
- NO+NC
- Switching frequency:
- 1,5kHz
- Response time:
- 333µs
- Operating Voltage:
- 10 30VDC
- No-Load supply current:
- ? 30mA
- Load current:
- ?100mA
- Leakage current:
- ?10?A
- Output voltage drop:
- ?2V@Iload=100mA
- Max ripple content:
- ?10%
- LED indicators:
- Yellow (Lon) or output status Lo/Do
- Time delay before availability:
- ?200ms
- Short-circuit protection:
- Short circuit (autoreset), Overvoltage
- Reverse Polarity Protection:
- Polarity inversal, Inpulsive voltage
- Emission:
- LASER Red (650nm) class2
- Interference to external light:
- 3000lux (incandescent lamp), 10000lux (sunlight)
- Weight:
- 60g
- Housing Material:
- Nickel plated brass / PC plug
- Connections:
- M12 plug
- Active Head Material:
- Glass / ABS
- Tightening torque:
- 25Nm
- Operating temperature:
- -15°C...+ 55°C (Without freeze)
- Diameter/Dimension:
- M18
- Approvals:
- CE cULus
- EMC compatibility:
- EN 60947-5-2
- Shocks and vibrations:
- Vibration IEC 60068-2-6 / Shock IEC 60068-2-27
- Degree of protection:
- IP67
- Supplied Accessories:
- nuts M18 x 1, screwdriver
- Operating Temperature:
- - 15°C...+ 55°C (Without freeze)
- Mechanical Protection:
- IP67
- 2D Files:
- View
- 3D Files:
- View
- CAD Files:
- View
- EU Declarations:
- View
- Catalog:
- View
- User Manuals:
- View
