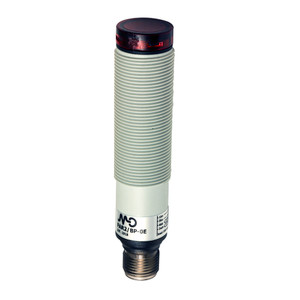

The Datasensing FAR3/BP-0EAN Sensors are advanced photoelectric sensors designed for precise and reliable detection. Featuring an axial diffuse reflection principle, these sensors offer a nominal sensing distance of 100mm, making them ideal for short-distance applications. The sensors are equipped with a PNP NO+NC output type, providing both normally open and normally closed functions for versatile integration into various systems.
Constructed with a robust PBT/PC housing and an M12 plastic connector, the sensors ensure durability and ease of installation. They are designed to withstand harsh environments, with an IP67 mechanical protection rating and approvals for use in explosive atmospheres (II 3G Ex nA IIC T6, II 3D Ex tD A22).
The sensors feature a high switching frequency of 250Hz and a rapid response time of 2ms, ensuring quick and accurate detection. They operate within a voltage range of 10
30VDC, with a low no-load supply current of ?30mA and a load current capacity of ?100mA. The sensors also include short-circuit and overvoltage protection, as well as reverse polarity protection, enhancing their reliability and safety.
With a sensitivity adjustment trimmer and a repeat accuracy of 5%, these sensors offer precise control and adaptability to various applications. The LED indicators provide clear status updates, while the sensors' resistance to external light interference ensures consistent performance even in challenging lighting conditions.
Supplied with M18 x 1 nuts and a screwdriver, the Datasensing FAR3/BP-0EAN Sensors are ready for immediate installation and use, making them a dependable choice for industrial automation and safety applications.
- Nominal sensing distance:
- 100mm
- Thermal drift of Sr:
- ?10% Sr
- Repeat Accuracy:
- 5%
- Sensitivity adjustment:
- Trimmer
- Function Principle:
- Diffuse reflection (short distance, ?200mm)
- Notes:
- white target Kodak 90% 100 x 100mm
- Optic position:
- Axial
- Output type:
- PNP NO+NC
- Output Function:
- NO+NC
- Switching frequency:
- 250Hz
- Response time:
- 2ms
- Operating Voltage:
- 10 30VDC
- No-Load supply current:
- ? 30mA
- Load current:
- ?100mA
- Leakage current:
- ?10?A
- Output voltage drop:
- ?2V@Iload=100mA
- Max ripple content:
- ?10%
- LED indicators:
- Yellow (Lon) or output status Lo/Do
- Time delay before availability:
- ?200ms
- Short-circuit protection:
- Short circuit (autoreset), Overvoltage
- Reverse Polarity Protection:
- Polarity inversal, Inpulsive voltage
- Emission:
- LED Red (660nm)
- Interference to external light:
- 5000lux (incandescent lamp), 10000lux (sunlight)
- Housing Material:
- PBT / PC plug
- Connections:
- M12 plug
- Active Head Material:
- PC
- Tightening torque:
- 1Nm
- Diameter/Dimension:
- M18
- Approvals:
- CE cULus Ex: II 3G Ex nA IIC T6 Gc II 3D Ex tc IIIB T85°C Dc
- EMC compatibility:
- EN 60947-5-2
- Shocks and vibrations:
- Vibration IEC 60068-2-6 / Shock IEC 60068-2-27
- Supplied Accessories:
- nuts M18 x 1, screwdriver
- Dimensions:
- M18 x 1 /L =81,6mm
- Operating Temperature:
- - 25°C + 70°C (Without freeze)
- Mechanical Protection:
- IP67
