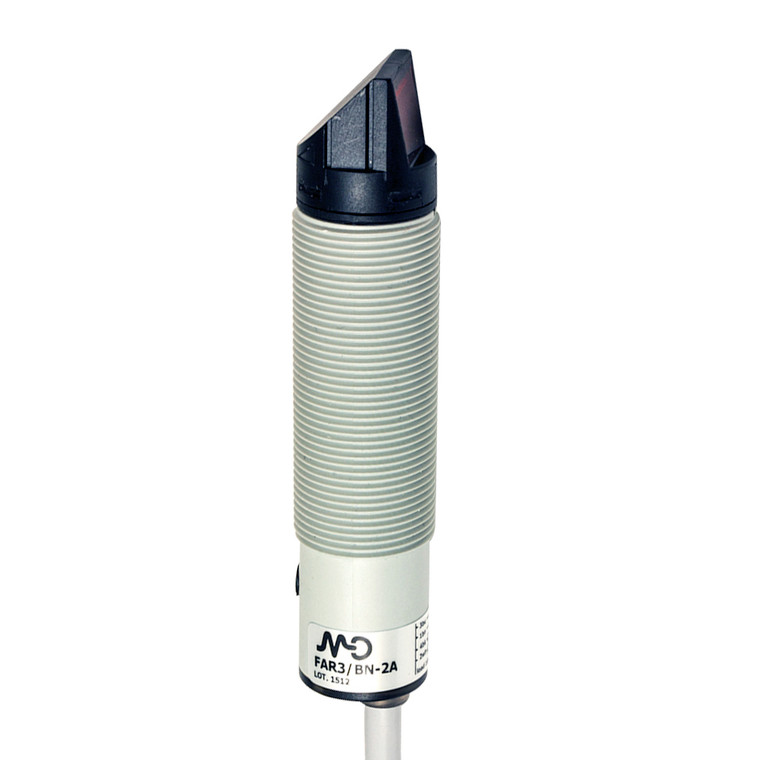

Datasensing FAR3/BP-2A Sensors
Datasensing
$103.45
The Datasensing FAR3/BP-2A Sensors are advanced photoelectric sensors designed for precise and reliable detection. Featuring a 90° diffuse reflection principle, these sensors offer a nominal sensing distance of 100mm, making them ideal for short-distance applications. The sensors are equipped with a PNP NO+NC output type, providing versatile switching options. With a robust IP67 protection rating, they are suitable for use in harsh environments, offering total protection against electric damages and ensuring durability with their metallic or plastic housing.
These sensors operate on a 10...30 VDC power supply and include a sensitivity adjustment trimmer for fine-tuning performance. They boast a high switching frequency of 250Hz and a rapid response time of 2ms, ensuring quick and accurate detection. The sensors are designed to withstand thermal drift of ?10% Sr and maintain a repeat accuracy of 5%.
The FAR3/BP-2A Sensors are equipped with LED indicators for easy status monitoring and feature comprehensive protection mechanisms, including short-circuit, overvoltage, and reverse polarity protection. They are compatible with a wide range of operating temperatures, from -25°C to +70°C, and are resistant to shocks and vibrations as per IEC standards.
Supplied with M18 x 1 nuts and a screwdriver, these sensors are easy to install and integrate into various systems. Their compact dimensions (M18 x 1/L=78.5mm) and lightweight design (50g) make them a versatile choice for numerous industrial applications. Approved by CE and cULus, the Datasensing FAR3/BP-2A Sensors are a reliable solution for efficient and accurate object detection.
- Nominal sensing distance:
- 100mm
- Thermal drift of Sr:
- ?10% Sr
- Repeat Accuracy:
- 5%
- Sensitivity adjustment:
- Trimmer
- Function Principle:
- Diffuse reflection (short distance, ?200mm)
- Notes:
- white target Kodak 90% 100 x 100mm
- Optic position:
- Radial 90°
- Output type:
- PNP NO+NC
- Output Function:
- NO+NC
- Switching frequency:
- 250Hz
- Response time:
- 2ms
- Operating Voltage:
- 10 30VDC
- No-Load supply current:
- ? 30mA
- Load current:
- ?100mA
- Leakage current:
- ?10?A
- Output voltage drop:
- ?2V@Iload=100mA
- Max ripple content:
- ?10%
- LED indicators:
- Yellow (Lon) or output status Lo/Do
- Time delay before availability:
- ?200ms
- Short-circuit protection:
- Short circuit (autoreset), Overvoltage
- Reverse Polarity Protection:
- Polarity inversal, Inpulsive voltage
- Emission:
- LED Red (660nm)
- Interference to external light:
- 5000lux (incandescent lamp), 10000lux (sunlight)
- Weight:
- 50g
- Housing Material:
- PBT/ PC cable exit
- Connections:
- 2m PVC cable
- Active Head Material:
- PC
- Tightening torque:
- 1Nm
- Operating temperature:
- - 25°C + 70° C (Without freeze)
- Diameter/Dimension:
- M18
- Approvals:
- CE cULus
- EMC compatibility:
- EN 60947-5-2
- Shocks and vibrations:
- Vibration IEC 60068-2-6 / Shock IEC 60068-2-27
- Degree of protection:
- IP67
- Supplied Accessories:
- nuts M18 x 1, screwdriver
- Operating Temperature:
- - 25°C + 70°C (Without freeze)
- Mechanical Protection:
- IP67
