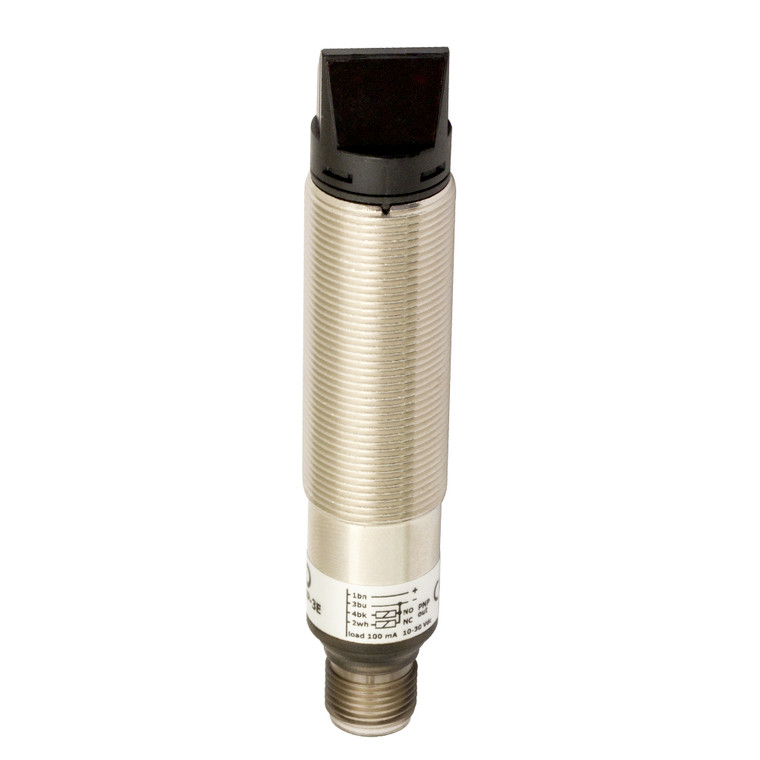

Datasensing FARN/BP-3E Sensors
Datasensing
$114.44
The Datasensing FARN/BP-3E Sensors are advanced photoelectric sensors designed for precise and reliable object detection. Featuring a 90° polarized optic with a nominal sensing distance of 2.5 meters, these sensors are ideal for applications requiring high accuracy and sensitivity. The sensors operate on a 10...30 VDC power supply and offer both axial and radial optics with a flat surface, making them versatile for various installation needs.
Equipped with a PNP NO+NC output type, the FARN/BP-3E sensors provide flexibility in output functions, supporting both normally open and normally closed configurations. The sensors boast a high switching frequency of 250Hz and a rapid response time of 2ms, ensuring quick and efficient performance in dynamic environments.
Constructed with a robust nickel-plated brass housing and a PMMA active head, these sensors are built to withstand harsh conditions, with an IP67 protection rating against dust and water ingress. The sensors are also equipped with short-circuit and overvoltage protection, as well as reverse polarity protection, ensuring durability and longevity.
The FARN/BP-3E sensors feature a sensitivity adjustment trimmer, allowing for precise calibration to suit specific application requirements. With a thermal drift of ?10% Sr and a repeat accuracy of 5%, these sensors maintain consistent performance even in varying temperatures ranging from -25°C to +70°C.
Additional features include LED indicators for output status, a low no-load supply current of ?30mA, and a load current capacity of ?100mA. The sensors are compatible with M12 connections and come with supplied accessories such as M18 x 1 nuts and a screwdriver for easy installation.
Approved by CE and cULus, and compliant with EMC compatibility standards EN 60947-5-2, the Datasensing FARN/BP-3E Sensors are a reliable choice for industrial automation and control applications, offering total protection against electric damages and interference from external light sources.
- Nominal sensing distance:
- 2,5m
- Thermal drift of Sr:
- ?10% Sr
- Repeat Accuracy:
- 5%
- Sensitivity adjustment:
- Trimmer
- Function Principle:
- Polarized
- Notes:
- On RL110 reflector
- Optic position:
- Radial 90°
- Output type:
- PNP NO+NC
- Output Function:
- NO+NC
- Switching frequency:
- 250Hz
- Response time:
- 2ms
- Operating Voltage:
- 10 30VDC
- No-Load supply current:
- ? 30mA
- Load current:
- ?100mA
- Leakage current:
- ?10?A
- Output voltage drop:
- ?2V@Iload=100mA
- Max ripple content:
- ?10%
- LED indicators:
- Yellow (Lon) or output status Lo/Do
- Time delay before availability:
- ?200ms
- Short-circuit protection:
- Short circuit (autoreset), Overvoltage
- Reverse Polarity Protection:
- Polarity inversal, Inpulsive voltage
- Emission:
- LED Red (660nm)
- Interference to external light:
- 5000lux (incandescent lamp), 10000lux (sunlight)
- Weight:
- 100g
- Housing Material:
- Nickel plated brass / PC plug
- Connections:
- M12 plug
- Active Head Material:
- PMMA
- Tightening torque:
- 25Nm
- Operating temperature:
- - 25°C + 70° C (Without freeze)
- Diameter/Dimension:
- M18
- Approvals:
- CE cULus
- EMC compatibility:
- EN 60947-5-2
- Shocks and vibrations:
- Vibration IEC 60068-2-6 / Shock IEC 60068-2-27
- Degree of protection:
- IP67
- Supplied Accessories:
- nuts M18 x 1, screwdriver
- Operating Temperature:
- - 25°C + 70°C (Without freeze)
- Mechanical Protection:
- IP67
