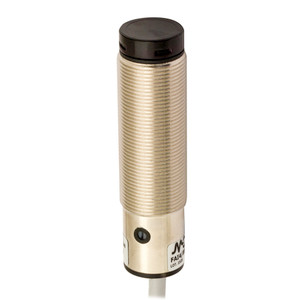

Datasensing FARP/BP-0E Sensors

The Datasensing FARP/BP-0E Sensors offer a comprehensive range of M18 sensors designed for optimal performance with a 10...30 Vdc power supply. These sensors feature both axial and radial optics with a flat surface, making them ideal for various applications. The retro-reflective models are specifically designed for detecting transparent objects, utilizing a red emission and boasting an IP67 protection degree for enhanced durability. Available in both metallic and plastic housings, these sensors provide flexibility in installation and application. Each model includes sensitivity adjustment capabilities, ensuring precise detection and adaptability to different environments. The sensors are equipped with total protection against any type of electric damages, ensuring reliability and longevity. They are CE and cULus listed, meeting high standards of safety and performance. Key specifications include a nominal sensing distance of 4 meters, a thermal drift of Sr at ?10% Sr, and a repeat accuracy of 5%. The sensors operate on a polarized function principle and are designed for use with the RL110 reflector. The optic position is axial, and the output type is PNP NO+NC, offering both normally open and normally closed output functions. With a switching frequency of 250Hz and a response time of 2ms, these sensors provide quick and accurate detection. The operating voltage ranges from 10 to 30VDC, with a no-load supply current of ? 30mA and a load current of ?100mA. The sensors feature a low leakage current of ?10?A and an output voltage drop of ?2V at a load current of 100mA. They are designed to handle a maximum ripple content of ?10% and include yellow LED indicators for output status. Built with robust protection features, the sensors include short-circuit protection with autoreset, overvoltage protection, and reverse polarity protection. They are resistant to interference from external light sources, withstanding up to 5000lux from incandescent lamps and 10000lux from sunlight. The sensors are compact, with dimensions of M18 x 1 /L =81.6mm, and lightweight at 30g. The housing is made from durable PBT with a PC plug, and the active head is constructed from PMMA. They are designed to operate in temperatures ranging from -25°C to +70°C without freezing, and they come with supplied accessories, including M18 x 1 nuts. The sensors are compliant with EMC compatibility standards EN 60947-5-2 and are tested for shocks and vibrations according to IEC standards. With an IP67 degree of protection, these sensors are built to withstand harsh environments and provide reliable performance.
