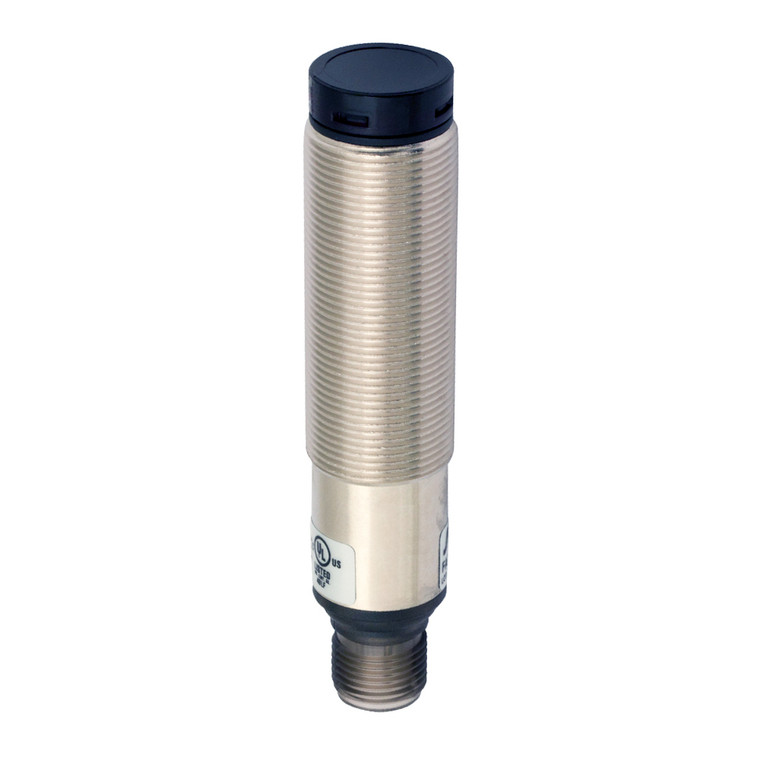

Datasensing FARP/BP-1E Sensors
Datasensing
$83.51
The Datasensing FARP/BP-1E Sensors are advanced photoelectric sensors designed for precision and reliability. Featuring an axial polarized design, these sensors offer a nominal sensing distance of 4 meters, making them ideal for detecting transparent objects with ease. The robust construction includes a nickel-plated brass housing and a PMMA active head, ensuring durability and resistance to harsh environments. With a power supply range of 10 to 30 VDC, these sensors are equipped with PNP NO+NC output functions, providing versatile connectivity options.
The FARP/BP-1E Sensors boast a high switching frequency of 250Hz and a rapid response time of 2ms, ensuring quick and accurate detection. They are designed with total protection against electric damages, including short-circuit, overvoltage, and reverse polarity protection. The sensors are also equipped with LED indicators for easy status monitoring and feature a time delay before availability of ?200ms.
Engineered to withstand extreme conditions, these sensors operate efficiently within a temperature range of -25°C to +70°C and are protected against shocks and vibrations as per IEC standards. The IP67 protection degree ensures resistance to dust and water, making them suitable for a wide range of industrial applications. With CE and cULus approvals, the Datasensing FARP/BP-1E Sensors are a reliable choice for any demanding sensing application.
- Nominal sensing distance:
- 4m
- Thermal drift of Sr:
- ?10% Sr
- Repeat Accuracy:
- 5%
- Sensitivity adjustment:
- No
- Function Principle:
- Polarized
- Notes:
- On RL110 reflector
- Optic position:
- Axial
- Output type:
- PNP NO+NC
- Output Function:
- NO+NC
- Switching frequency:
- 250Hz
- Response time:
- 2ms
- Operating Voltage:
- 10 30VDC
- No-Load supply current:
- ? 30mA
- Load current:
- ?100mA
- Leakage current:
- ?10?A
- Output voltage drop:
- ?2V@Iload=100mA
- Max ripple content:
- ?10%
- LED indicators:
- Yellow (Lon) or output status Lo/Do
- Time delay before availability:
- ?200ms
- Short-circuit protection:
- Short circuit (autoreset), Overvoltage
- Reverse Polarity Protection:
- Polarity inversal, Inpulsive voltage
- Emission:
- LED Red (660nm)
- Interference to external light:
- 5000lux (incandescent lamp), 10000lux (sunlight)
- Weight:
- 100g
- Housing Material:
- Nickel plated brass / PC plug
- Connections:
- M12 plug
- Active Head Material:
- PMMA
- Tightening torque:
- 25Nm
- Operating temperature:
- - 25°C + 70° C (Without freeze)
- Diameter/Dimension:
- M18
- Approvals:
- CE cULus
- EMC compatibility:
- EN 60947-5-2
- Shocks and vibrations:
- Vibration IEC 60068-2-6 / Shock IEC 60068-2-27
- Degree of protection:
- IP67
- Supplied Accessories:
- nuts M18 x 1
- Operating Temperature:
- - 25°C + 70°C (Without freeze)
- Mechanical Protection:
- IP67
