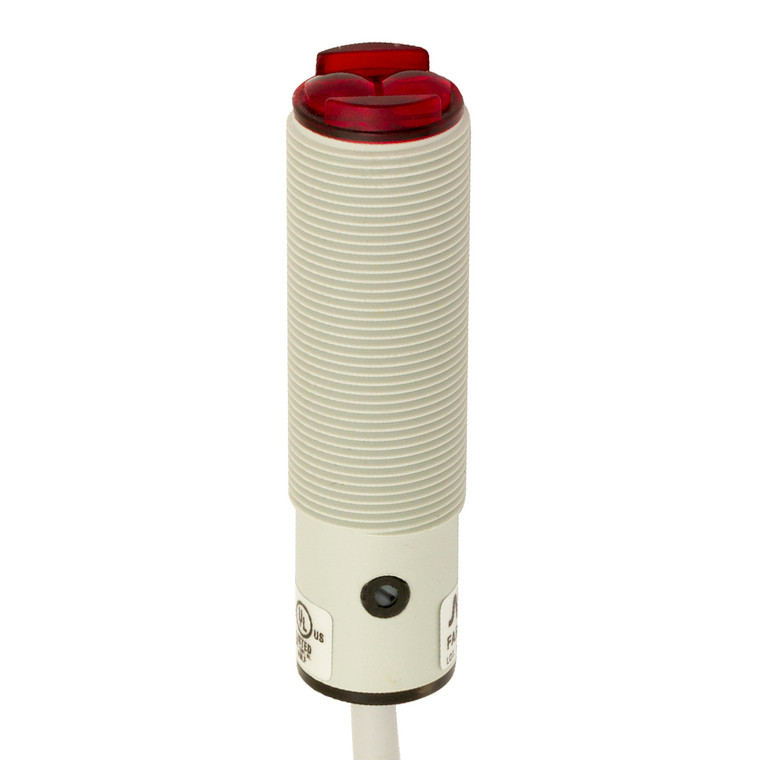

Datasensing FARS/BP-0A Sensors
Datasensing
$144.00
The Datasensing FARS/BP-0A Sensors are advanced photoelectric sensors designed for precise detection with a nominal sensing distance of 130mm. Featuring an axial optic position and a background suppression function principle, these sensors are ideal for applications requiring high accuracy and reliability. The sensors operate within a voltage range of 10 to 30 VDC and offer a PNP NO+NC output type, ensuring versatile integration into various systems. With a robust IP67 protection degree, they are suitable for harsh environments, providing total protection against electric damages, including short-circuit and reverse polarity protection.
The FARS/BP-0A Sensors are equipped with a sensitivity adjustment trimmer, allowing for fine-tuning to meet specific application needs. They boast a fast response time of 500µs and a switching frequency of 1kHz, making them suitable for high-speed operations. The sensors are housed in durable PBT/PC material with a 2m PVC cable connection, ensuring longevity and ease of installation. Additionally, they are CE and cULus listed, guaranteeing compliance with international safety standards.
These sensors are designed to withstand extreme temperatures ranging from -25°C to +70°C and are resistant to shocks and vibrations as per IEC standards. The included accessories, such as M18 x 1 nuts and a screwdriver, facilitate easy setup and maintenance. With their advanced features and robust construction, the Datasensing FARS/BP-0A Sensors are the perfect choice for reliable and efficient object detection in various industrial applications.
- Nominal sensing distance:
- 130mm
- Thermal drift of Sr:
- ?10% Sr
- Repeat Accuracy:
- 5%
- Sensitivity adjustment:
- Trimmer
- Minimum sensing distance (blind zone):
- 30mm
- Function Principle:
- Blackground suppression
- Notes:
- white target Kodak 90% 100 x 100mm
- Optic position:
- Axial
- Output type:
- PNP NO+NC
- Output Function:
- NO+NC
- Switching frequency:
- 1Khz
- Response time:
- 500µs
- Operating Voltage:
- 10 30VDC
- No-Load supply current:
- ? 25mA
- Load current:
- ?100mA
- Leakage current:
- ?10?A
- Output voltage drop:
- ?2V@Iload=100mA
- Max ripple content:
- ?10%
- LED indicators:
- Yellow (Lon) or output status Lo/Do
- Time delay before availability:
- ?200ms
- Short-circuit protection:
- Short circuit (autoreset), Overvoltage
- Reverse Polarity Protection:
- Polarity inversal, Inpulsive voltage
- Emission:
- LED Red (660nm)
- Interference to external light:
- 5000lux (incandescent lamp), 10000lux (sunlight)
- Dimensions:
- M18 x 1/L=65,5mm
- Weight:
- 50g
- Housing Material:
- PBT / PC cable exit
- Connections:
- 2m PVC cable
- Active Head Material:
- PMMA
- Tightening torque:
- 1Nm
- Operating temperature:
- - 25°C + 70° C (Without freeze)
- Diameter/Dimension:
- M18
- Approvals:
- CE cULus
- EMC compatibility:
- EN 60947-5-2
- Shocks and vibrations:
- Vibration IEC 60068-2-6 / Shock IEC 60068-2-27
- Degree of protection:
- IP67
- Supplied Accessories:
- nuts M18 x 1, screwdriver
- Dimensions:
- M18 x 1/L=67,5mm
- Operating Temperature:
- - 25°C + 70°C (Without freeze)
- Mechanical Protection:
- IP67
