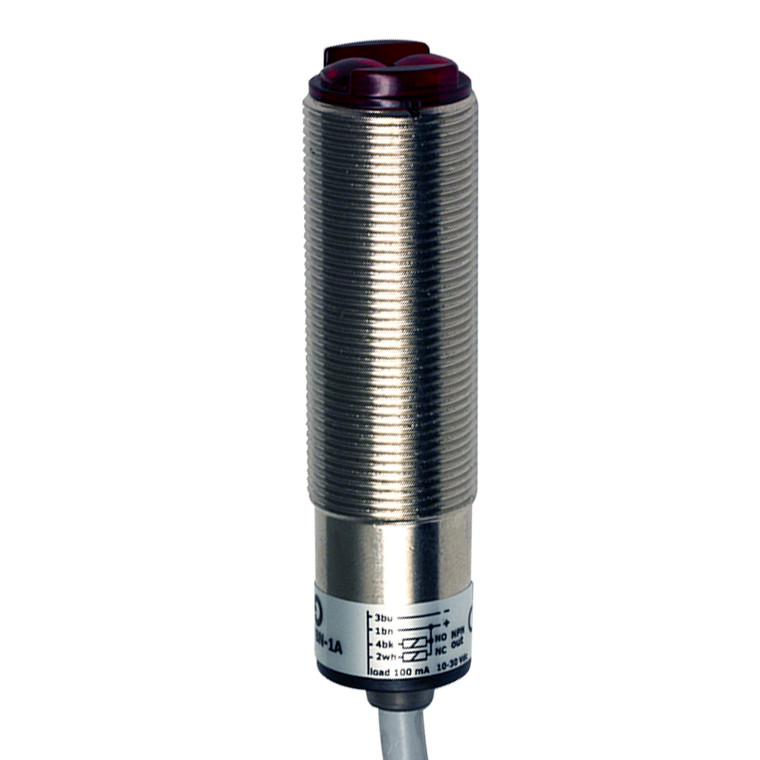

Datasensing FARS/BP-1A Sensors
Datasensing
$150.18
The Datasensing FARS/BP-1A Sensors are advanced photoelectric sensors designed for precise detection with a nominal sensing distance of 130mm and a minimum sensing distance of 30mm. Featuring a robust M18 design, these sensors operate on a 10...30 VDC power supply and are equipped with axial optics for enhanced performance. The sensors offer a PNP NO+NC output type, ensuring versatile application possibilities. With a sensitivity adjustment trimmer, users can fine-tune the sensor's performance to suit specific needs. The FARS/BP-1A is built with a nickel-plated brass housing and a PMMA active head, providing durability and reliability in various environments. It boasts an IP67 protection degree, making it resistant to dust and water ingress. The sensor is equipped with LED indicators for easy status monitoring and features comprehensive protection against electrical damages, including short-circuit and reverse polarity protection. With approvals from CE and cULus, this sensor is a reliable choice for industrial applications requiring high precision and resilience.
- Nominal sensing distance:
- 130mm
- Thermal drift of Sr:
- ?10% Sr
- Repeat Accuracy:
- 5%
- Sensitivity adjustment:
- Trimmer
- Minimum sensing distance (blind zone):
- 30mm
- Function Principle:
- Blackground suppression
- Notes:
- white target Kodak 90% 100 x 100mm
- Optic position:
- Axial
- Output type:
- PNP NO+NC
- Output Function:
- NO+NC
- Switching frequency:
- 1Khz
- Response time:
- 500µs
- Operating Voltage:
- 10 30VDC
- No-Load supply current:
- ? 25mA
- Load current:
- ?100mA
- Leakage current:
- ?10?A
- Output voltage drop:
- ?2V@Iload=100mA
- Max ripple content:
- ?10%
- LED indicators:
- Yellow (Lon) or output status Lo/Do
- Time delay before availability:
- ?200ms
- Short-circuit protection:
- Short circuit (autoreset), Overvoltage
- Reverse Polarity Protection:
- Polarity inversal, Inpulsive voltage
- Emission:
- LED Red (660nm)
- Interference to external light:
- 5000lux (incandescent lamp), 10000lux (sunlight)
- Weight:
- 130g
- Housing Material:
- Nickel plated brass / PC cable exit
- Connections:
- 2m PVC cable
- Active Head Material:
- PMMA
- Tightening torque:
- 25Nm
- Operating temperature:
- - 25°C + 70° C (Without freeze)
- Diameter/Dimension:
- M18
- Approvals:
- CE cULus
- EMC compatibility:
- EN 60947-5-2
- Shocks and vibrations:
- Vibration IEC 60068-2-6 / Shock IEC 60068-2-27
- Degree of protection:
- IP67
- Supplied Accessories:
- nuts M18 x 1, screwdriver
- Operating Temperature:
- - 25°C + 70°C (Without freeze)
- Mechanical Protection:
- IP67
