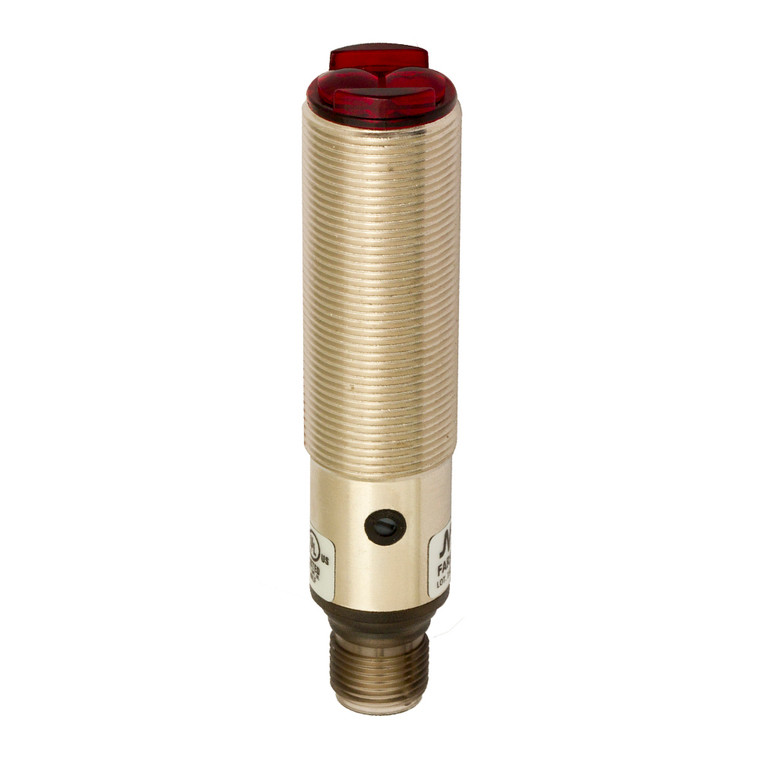

The Datasensing FARS/BP-1E Sensors offer a comprehensive range of M18 sensors designed for optimal performance with a 10...30 Vdc power supply. These sensors feature both axial and radial optics with a flat surface, making them versatile for various applications. The retro-reflective models are specifically engineered for detecting transparent objects, utilizing a red emission and boasting an IP67 protection degree for robust durability. Available in both metallic and plastic housings, these sensors provide flexibility in installation environments.
Each model includes sensitivity adjustment via a trimmer, ensuring precise detection capabilities. The sensors are equipped with total protection against any type of electric damages, including short-circuit protection with auto-reset, overvoltage, and reverse polarity protection. They are CE and cULus listed, ensuring compliance with international standards.
Key specifications include a nominal sensing distance of 130mm, a thermal drift of Sr at ?10% Sr, and a repeat accuracy of 5%. The sensors operate on a PNP NO+NC output type with a switching frequency of 1Khz and a response time of 500µs. They are designed to handle a load current of ?100mA with a leakage current of ?10?A and an output voltage drop of ?2V at Iload=100mA.
The sensors are equipped with LED indicators for easy status monitoring and are resistant to external light interference up to 5000lux from incandescent lamps and 10000lux from sunlight. With a robust nickel-plated brass housing and PC plug, these sensors are built to withstand harsh conditions, operating within a temperature range of -25°C to +70°C without freezing. The package includes M18 x 1 nuts and a screwdriver for convenient installation.
- Nominal sensing distance:
- 130mm
- Thermal drift of Sr:
- ?10% Sr
- Repeat Accuracy:
- 5%
- Sensitivity adjustment:
- Trimmer
- Minimum sensing distance (blind zone):
- 30mm
- Function Principle:
- Blackground suppression
- Notes:
- white target Kodak 90% 100 x 100mm
- Optic position:
- Axial
- Output type:
- PNP NO+NC
- Output Function:
- NO+NC
- Switching frequency:
- 1Khz
- Response time:
- 500µs
- Operating Voltage:
- 10 30VDC
- No-Load supply current:
- ? 25mA
- Load current:
- ?100mA
- Leakage current:
- ?10?A
- Output voltage drop:
- ?2V@Iload=100mA
- Max ripple content:
- ?10%
- LED indicators:
- Yellow (Lon) or output status Lo/Do
- Time delay before availability:
- ?200ms
- Short-circuit protection:
- Short circuit (autoreset), Overvoltage
- Reverse Polarity Protection:
- Polarity inversal, Inpulsive voltage
- Emission:
- LED Red (660nm)
- Interference to external light:
- 5000lux (incandescent lamp), 10000lux (sunlight)
- Weight:
- 100g
- Housing Material:
- Nickel plated brass / PC plug
- Connections:
- M12 plug
- Active Head Material:
- PMMA
- Tightening torque:
- 25Nm
- Operating temperature:
- - 25°C + 70° C (Without freeze)
- Diameter/Dimension:
- M18
- Approvals:
- CE cULus
- EMC compatibility:
- EN 60947-5-2
- Shocks and vibrations:
- Vibration IEC 60068-2-6 / Shock IEC 60068-2-27
- Degree of protection:
- IP67
- Supplied Accessories:
- nuts M18 x 1, screwdriver
- Operating Temperature:
- - 25°C + 70°C (Without freeze)
- Mechanical Protection:
- IP67
