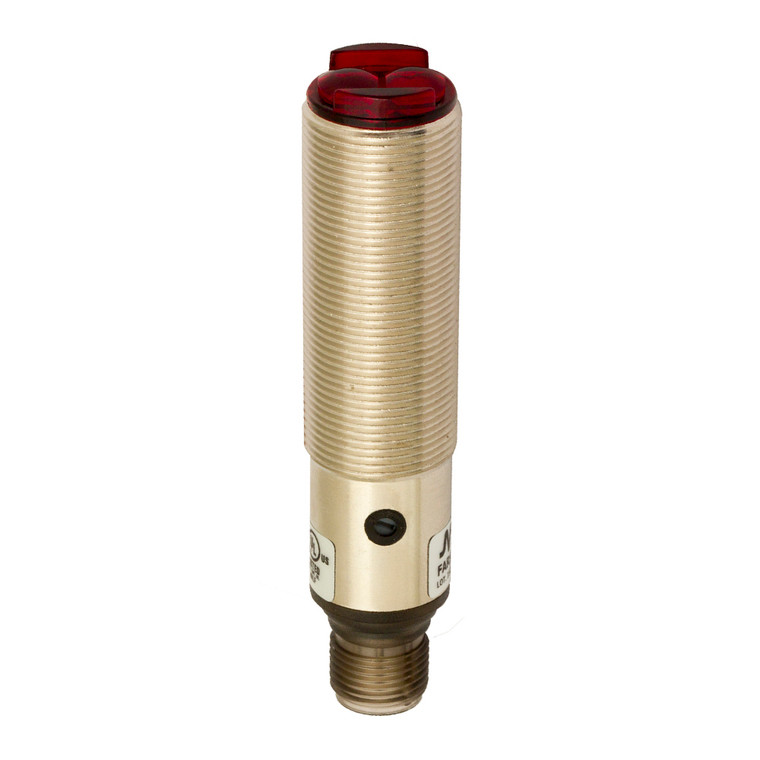

Datasensing FARS/BP-1E7712 Sensors
Datasensing
$147.62
The Datasensing FARS/BP-1E7712 Sensors are advanced photoelectric sensors designed for precise detection with axial background suppression. Featuring an adjustable sensing range of 60-100 mm, these sensors are equipped with a PNP NO+NC output type and a robust metal housing with an M12 antireflex connection. The sensors operate on a 10...30 VDC power supply and are built to withstand harsh environments with an IP67 protection rating. They are suitable for detecting transparent objects with a red LED emission and offer total protection against electrical damages, including short-circuit and reverse polarity protection. The sensors are CE and cULus approved, ensuring compliance with international standards. With a compact M18 design, these sensors are easy to install and come with supplied accessories such as M18 nuts and a screwdriver. Ideal for industrial applications, they provide reliable performance with a high switching frequency of 1kHz and a fast response time of 500µs.
- Nominal sensing distance:
- 100mm
- Thermal drift of Sr:
- ?10% Sr
- Repeat Accuracy:
- 5%
- Sensitivity adjustment:
- Trimmer
- Minimum sensing distance (blind zone):
- 60mm
- Function Principle:
- Blackground suppression
- Notes:
- white target Kodak 90% 100 x 100mm
- Optic position:
- Axial
- Output type:
- PNP NO+NC
- Output Function:
- NO+NC
- Switching frequency:
- 1Khz
- Response time:
- 500µs
- Operating Voltage:
- 10 30VDC
- No-Load supply current:
- ? 25mA
- Load current:
- ?100mA
- Leakage current:
- ?10?A
- Output voltage drop:
- ?2V@Iload=100mA
- Max ripple content:
- ?10%
- LED indicators:
- Yellow (Lon) or output status Lo/Do
- Time delay before availability:
- ?200ms
- Short-circuit protection:
- Short circuit (autoreset), Overvoltage
- Reverse Polarity Protection:
- Polarity inversal, Inpulsive voltage
- Emission:
- LED Red (660nm)
- Interference to external light:
- 5000lux (incandescent lamp), 10000lux (sunlight)
- Weight:
- 100g
- Housing Material:
- Nickel plated brass / PC plug
- Connections:
- M12 plug
- Active Head Material:
- PMMA
- Tightening torque:
- 25Nm
- Operating temperature:
- - 25°C + 70° C (Without freeze)
- Diameter/Dimension:
- M18
- Approvals:
- CE cULus
- EMC compatibility:
- EN 60947-5-2
- Shocks and vibrations:
- Vibration IEC 60068-2-6 / Shock IEC 60068-2-27
- Degree of protection:
- IP67
- Supplied Accessories:
- nuts M18 x 1, screwdriver
- Operating Temperature:
- - 25°C + 70°C (Without freeze)
- Mechanical Protection:
- IP67
