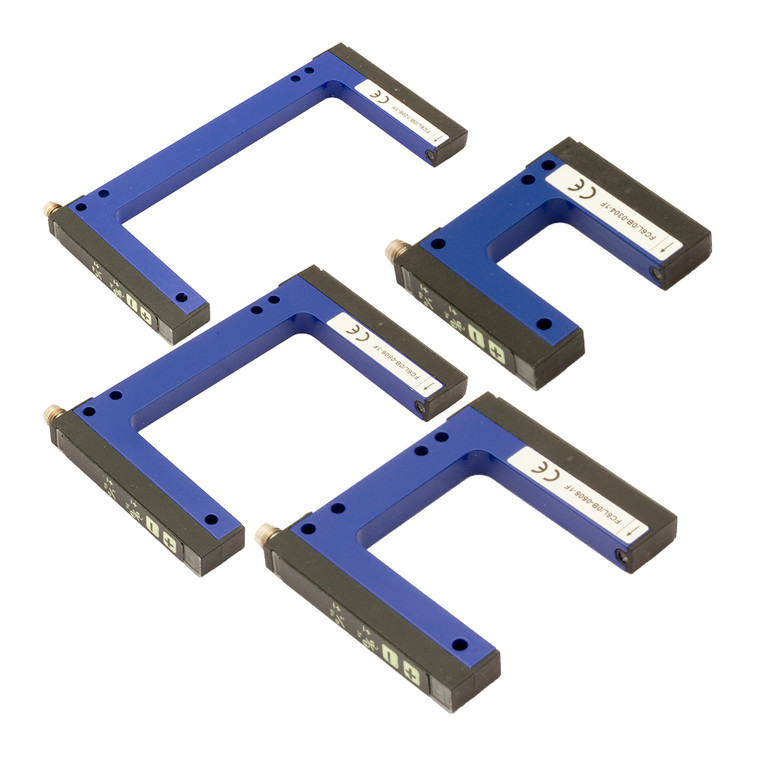

Datasensing FC6L/0B-0306-1F Sensors
Datasensing
$461.26
The Datasensing FC6L/0B-0306-1F Sensors are designed for precision and reliability in industrial applications. Featuring a 30mm width and 59mm depth slot, these sensors offer simple and accurate manual adjustments using intuitive -/+ buttons. With a robust metal housing and infrared emission, they ensure durability and performance in challenging environments. The sensors are equipped with a LASER emission class 1 for enhanced detection capabilities, allowing for the identification of objects as small as 0.05mm.
The sensors support both PNP and NPN output types, with light/dark switching selectable by button, providing flexibility in various operational settings. They operate within a temperature range of -20°C to +60°C and are equipped with M8 connectors (4 pins) for easy integration. With a high switching frequency of 10 kHz and a rapid response time of 50 µs, these sensors are ideal for high-speed applications.
Additional features include short-circuit and reverse polarity protection, ensuring safe and reliable operation. The sensors are CE approved and EMC compatible, with an IP65 degree of protection, making them suitable for use in harsh industrial environments. The painted aluminum housing and polyamide/glass active head material contribute to their lightweight design, weighing only 80g. With a nominal sensing distance of 30mm and a no-load supply current of ? 40mA, these sensors are both efficient and effective for a wide range of applications.
- Nominal sensing distance:
- 30mm
- minimum detectable object:
- 0.05mm
- Sensitivity adjustment:
- Teach-in
- Function Principle:
- Photoelectric slot
- Output type:
- NPN / PNP L/D Selectable
- Output Function:
- L/D Selectable
- Switching frequency:
- 10kHz
- Response time:
- 50 µs
- Operating Voltage:
- 12...24VDC
- No-Load supply current:
- ? 40mA
- Load current:
- ?100mA
- Output voltage drop:
- ?2V@Iload=100mA
- Max ripple content:
- ?10%
- LED indicators:
- Yellow (status output), Red (adjustment or block keypad)
- Time delay before availability:
- ?200ms
- Short-circuit protection:
- Yes
- Reverse Polarity Protection:
- Yes
- Emission:
- LASER Red (670nm) class1
- Interference to external light:
- 5000lux (incandescent lamp), 10000lux (sunlight)
- Weight:
- 80g
- Housing Material:
- Painted aluminium
- Connections:
- M8 plug 4pin
- Active Head Material:
- Polyamide/glass
- Operating temperature:
- - 20°C + 50°C
- Storage temperature:
- - 30°C + 80°C
- Width slot detection:
- 30mm
- Depth slot detection:
- 59mm
- Approvals:
- CE
- EMC compatibility:
- EN 60947-5-2
- Degree of protection:
- IP65
- Operating Temperature:
- - 10°C + 60°C (Without freeze)
- Mechanical Protection:
- IP65
