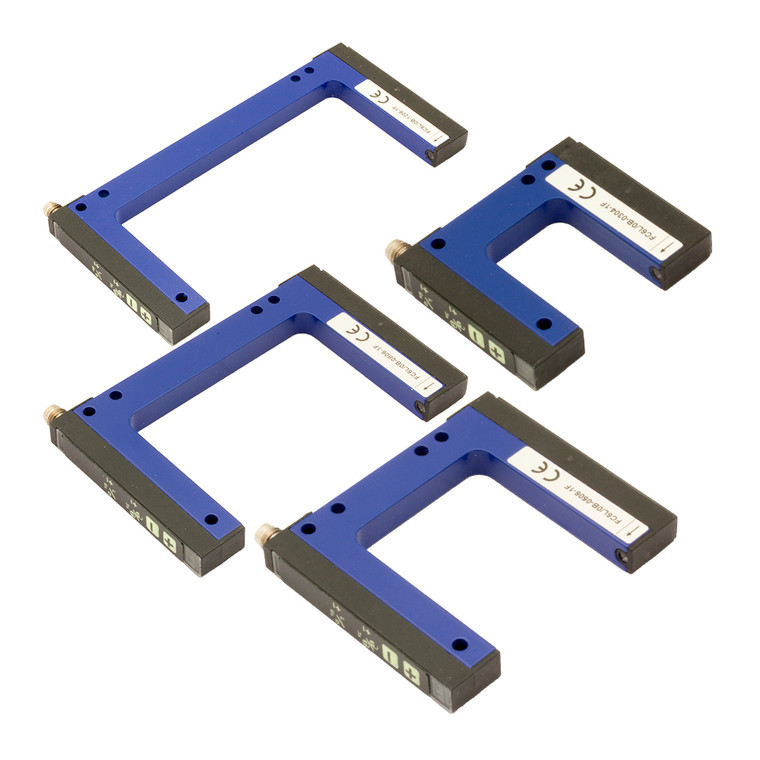

Datasensing FC6L/0B-0804-1F Sensors
Datasensing
$484.32
The Datasensing FC6L/0B-0804-1F Sensors are designed for precision and reliability in industrial applications. Featuring a slot width of 80mm and a depth of 42mm, these sensors utilize advanced ADJ Laser technology with PNP/NPN output options, making them versatile for various detection needs. The sensors offer simple manual adjustments via -/+ buttons, ensuring easy setup and operation. With a robust metal housing and a light/dark switching capability selectable by button, these sensors are built to withstand challenging environments.
The FC6L model excels in detecting minimum object sizes down to 0.05mm, with a high switching frequency of 10 kHz, ensuring rapid response times of just 50 µs. Operating within a temperature range of -20 to +60 °C, these sensors are equipped with M8 connectors (4 pins) and provide reliable performance with a nominal sensing distance of 80mm. The sensors are protected against short circuits and reverse polarity, and they feature LED indicators for status output and adjustment notifications.
Constructed with painted aluminum housing and polyamide/glass active head material, the sensors are lightweight at 90g and offer IP65 mechanical protection. They are CE approved and EMC compatible with EN 60947-5-2 standards, ensuring compliance and safety in various industrial settings. With a no-load supply current of ? 40mA and a load current of ?100mA, these sensors are efficient and effective for high-performance applications.
- Nominal sensing distance:
- 80mm
- minimum detectable object:
- 0.05mm
- Sensitivity adjustment:
- Teach-in
- Function Principle:
- Photoelectric slot
- Output type:
- NPN / PNP L/D Selectable
- Output Function:
- L/D Selectable
- Switching frequency:
- 10kHz
- Response time:
- 50 µs
- Operating Voltage:
- 12...24VDC
- No-Load supply current:
- ? 40mA
- Load current:
- ?100mA
- Output voltage drop:
- ?2V@Iload=100mA
- Max ripple content:
- ?10%
- LED indicators:
- Yellow (status output), Red (adjustment or block keypad)
- Time delay before availability:
- ?200ms
- Short-circuit protection:
- Yes
- Reverse Polarity Protection:
- Yes
- Emission:
- LASER Red (670nm) class1
- Interference to external light:
- 5000lux (incandescent lamp), 10000lux (sunlight)
- Weight:
- 90g
- Housing Material:
- Painted aluminium
- Connections:
- M8 plug 4pin
- Active Head Material:
- Polyamide/glass
- Operating temperature:
- - 20°C + 50°C
- Storage temperature:
- - 30°C + 80°C
- Width slot detection:
- 80mm
- Depth slot detection:
- 42mm
- Approvals:
- CE
- EMC compatibility:
- EN 60947-5-2
- Degree of protection:
- IP65
- Operating Temperature:
- - 10°C + 60°C (Without freeze)
- Mechanical Protection:
- IP65
