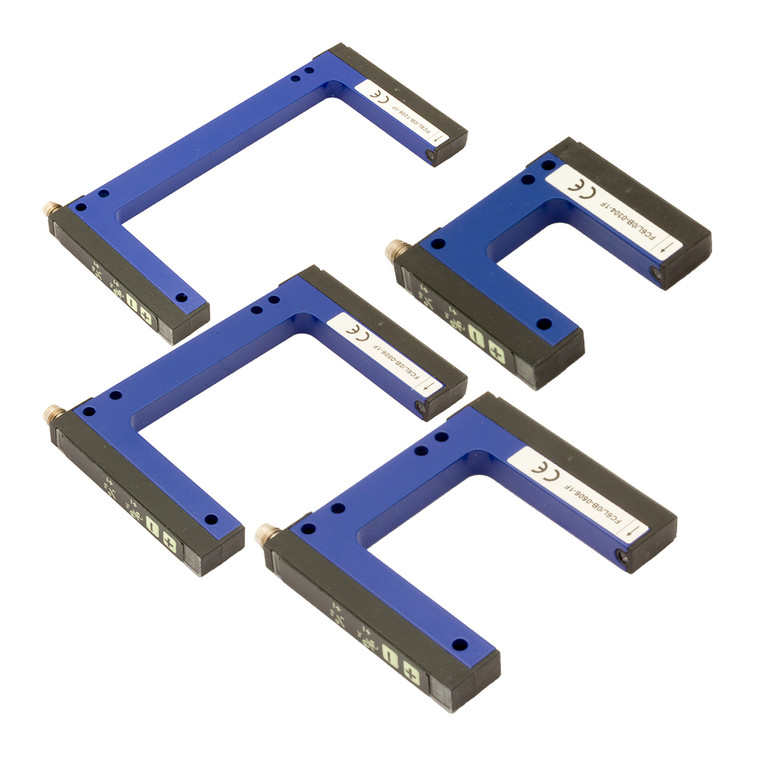

Datasensing FC6L/0B-0810-1F Sensors
Datasensing
$560.01
The Datasensing FC6L/0B-0810-1F Sensors are designed for precision and reliability in industrial applications. Featuring a slot width of 80mm and a depth of 95mm, these sensors offer simple and accurate manual adjustments using -/+ buttons. They utilize infrared and LASER emission (class 1) for enhanced detection capabilities, with a minimum detectable object size of 0.05mm. The sensors are housed in durable painted aluminum with an IP65 protection rating, ensuring resilience in challenging environments.
Equipped with M8 connectors (4 pins), the sensors support both PNP and NPN output types, with light/dark switching selectable by button. They operate within a temperature range of -20°C to +60°C and have a switching frequency of 10 kHz, ensuring rapid response times of 50 µs. The sensors are protected against short-circuits and reverse polarity, with a no-load supply current of ? 40mA and a load current of ?100mA.
Additional features include LED indicators for status output and adjustment, a time delay before availability of ?200ms, and compatibility with external light interference up to 5000lux (incandescent lamp) and 10000lux (sunlight). The active head is made from polyamide/glass, and the sensors are CE approved with EMC compatibility according to EN 60947-5-2 standards. Ideal for applications requiring high precision and reliability, the Datasensing FC6L/0B-0810-1F Sensors are a robust choice for your sensing needs.
- Nominal sensing distance:
- 80mm
- minimum detectable object:
- 0.05mm
- Sensitivity adjustment:
- Teach-in
- Function Principle:
- Photoelectric slot
- Output type:
- NPN / PNP L/D Selectable
- Output Function:
- L/D Selectable
- Switching frequency:
- 10kHz
- Response time:
- 50 µs
- Operating Voltage:
- 12...24VDC
- No-Load supply current:
- ? 40mA
- Load current:
- ?100mA
- Output voltage drop:
- ?2V@Iload=100mA
- Max ripple content:
- ?10%
- LED indicators:
- Yellow (status output), Red (adjustment or block keypad)
- Time delay before availability:
- ?200ms
- Short-circuit protection:
- Yes
- Reverse Polarity Protection:
- Yes
- Emission:
- LASER Red (670nm) class1
- Interference to external light:
- 5000lux (incandescent lamp), 10000lux (sunlight)
- Weight:
- 110g
- Housing Material:
- Painted aluminium
- Connections:
- M8 plug 4pin
- Active Head Material:
- Polyamide/glass
- Operating temperature:
- - 20°C + 50°C
- Storage temperature:
- - 30°C + 80°C
- Width slot detection:
- 80mm
- Depth slot detection:
- 95mm
- Approvals:
- CE
- EMC compatibility:
- EN 60947-5-2
- Degree of protection:
- IP65
- Operating Temperature:
- - 10°C + 60°C (Without freeze)
- Mechanical Protection:
- IP65
