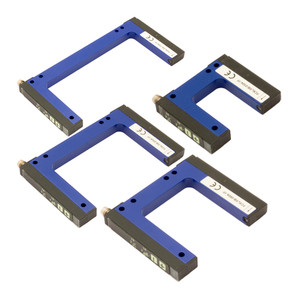

Datasensing FC6L/0B-1206-1F Sensors
Datasensing
$582.70
The Datasensing FC6L/0B-1206-1F Sensors are designed for precision and reliability in industrial applications. Featuring a 120mm wide slot and a 59mm depth, these sensors offer simple and accurate manual adjustments using intuitive -/+ buttons. They utilize infrared and LASER emission (class 1) for enhanced detection capabilities. The robust metal housing ensures durability, while the light/dark switching is easily selectable via a button. With a minimum detectable object size of 0.05mm, these sensors are ideal for high-precision tasks. They operate efficiently within a temperature range of -20°C to +60°C and are equipped with M8 connectors (4 pins) supporting PNP/NPN, LO/DO configurations. The sensors boast a high switching frequency of 10 kHz and a rapid response time of 50 µs, making them suitable for fast-paced environments. They are powered by a 12...24VDC operating voltage and feature short-circuit and reverse polarity protection for enhanced safety. The painted aluminum housing and polyamide/glass active head material ensure long-lasting performance, while the IP65 degree of protection guarantees resistance to dust and water ingress. With CE approvals and EMC compatibility (EN 60947-5-2), these sensors meet rigorous industry standards.
- Nominal sensing distance:
- 120mm
- minimum detectable object:
- 0.05mm
- Sensitivity adjustment:
- Teach-in
- Function Principle:
- Photoelectric slot
- Output type:
- NPN / PNP L/D Selectable
- Output Function:
- L/D Selectable
- Switching frequency:
- 10kHz
- Response time:
- 50 µs
- Operating Voltage:
- 12...24VDC
- No-Load supply current:
- ? 40mA
- Load current:
- ?100mA
- Output voltage drop:
- ?2V@Iload=100mA
- Max ripple content:
- ?10%
- LED indicators:
- Yellow (status output), Red (adjustment or block keypad)
- Time delay before availability:
- ?200ms
- Short-circuit protection:
- Yes
- Reverse Polarity Protection:
- Yes
- Emission:
- LASER Red (670nm) class1
- Interference to external light:
- 5000lux (incandescent lamp), 10000lux (sunlight)
- Weight:
- 109g
- Housing Material:
- Painted aluminium
- Connections:
- M8 plug 4pin
- Active Head Material:
- Polyamide/glass
- Operating temperature:
- - 20°C + 50°C
- Storage temperature:
- - 30°C + 80°C
- Width slot detection:
- 120mm
- Depth slot detection:
- 59mm
- Approvals:
- CE
- EMC compatibility:
- EN 60947-5-2
- Degree of protection:
- IP65
- Operating Temperature:
- - 10°C + 60°C (Without freeze)
- Mechanical Protection:
- IP65
