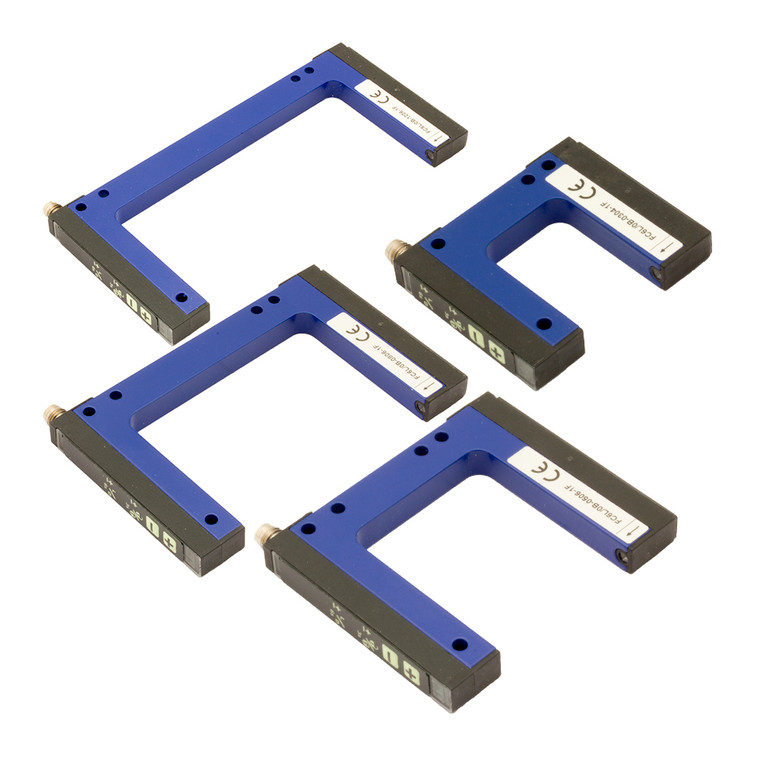

Datasensing FC6L/0B-1210-1F Sensors
Datasensing
$597.84
The Datasensing FC6L/0B-1210-1F Sensors are designed for precision and reliability in industrial applications. Featuring a slot width of 120mm and a depth of 95mm, these sensors utilize advanced ADJ Laser technology with PNP/NPN output options, making them versatile for various detection needs. The sensors offer simple manual adjustments via -/+ buttons, ensuring ease of use. With a robust metal housing and the ability to switch between light and dark modes, these sensors are adaptable to different environments. They are capable of detecting objects as small as 0.05mm, with a high switching frequency of 10 kHz, ensuring rapid response times. Operating within a temperature range of -20 to +60 °C, they are equipped with M8 connectors and provide reliable performance with short-circuit and reverse polarity protection. The sensors are housed in painted aluminum, offering durability and compliance with CE and EMC standards, and are protected against dust and water with an IP65 rating.
- Nominal sensing distance:
- 120mm
- minimum detectable object:
- 0.05mm
- Sensitivity adjustment:
- Teach-in
- Function Principle:
- Photoelectric slot
- Output type:
- NPN / PNP L/D Selectable
- Output Function:
- L/D Selectable
- Switching frequency:
- 10kHz
- Response time:
- 50 µs
- Operating Voltage:
- 12...24VDC
- No-Load supply current:
- ? 40mA
- Load current:
- ?100mA
- Output voltage drop:
- ?2V@Iload=100mA
- Max ripple content:
- ?10%
- LED indicators:
- Yellow (status output), Red (adjustment or block keypad)
- Time delay before availability:
- ?200ms
- Short-circuit protection:
- Yes
- Reverse Polarity Protection:
- Yes
- Emission:
- LASER Red (670nm) class1
- Interference to external light:
- 5000lux (incandescent lamp), 10000lux (sunlight)
- Weight:
- 130g
- Housing Material:
- Painted aluminium
- Connections:
- M8 plug 4pin
- Active Head Material:
- Polyamide/glass
- Operating temperature:
- - 20°C + 50°C
- Storage temperature:
- - 30°C + 80°C
- Width slot detection:
- 120mm
- Depth slot detection:
- 95mm
- Approvals:
- CE
- EMC compatibility:
- EN 60947-5-2
- Degree of protection:
- IP65
- Operating Temperature:
- - 10°C + 60°C (Without freeze)
- Mechanical Protection:
- IP65
